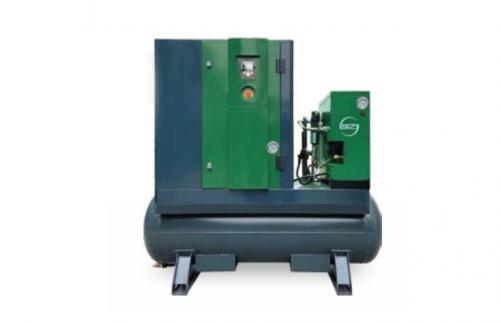

Integrated Air Compressor for industrial air compressor

Air Delivery Range: 1~2m3/min Air Pressure Range: 16 BarG

Share This Product:

FEATURES AND ADVANTAGES
TECHNICAL PARAMETERS

Laser cutting air compressor we also call it integrated air compressor for industrial air compressors,laser cutting machines are in high demand for the industrial air compressors,these laser cutting air compressor are customize made in various types and sizes.

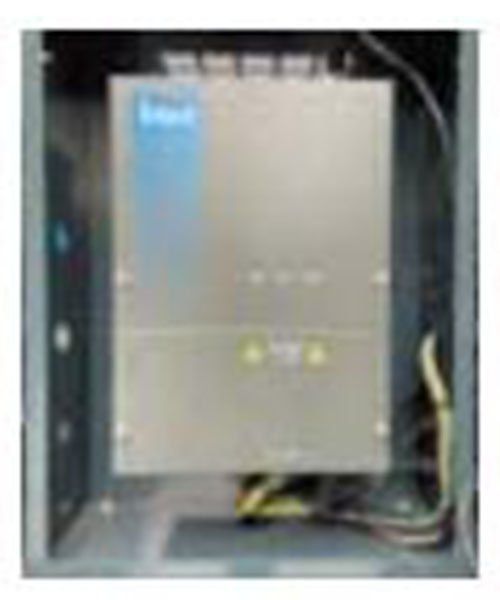

1. Intelligent frequency conversion control system

1.Frequency conversion drive, constant pressure output.
2.Intelligent controller, monitor pressure, temperature, power fluctuations, intelligently adjust compressed air production, maximize energy saving.
3.Easy operation and friendly human-machine interaction.

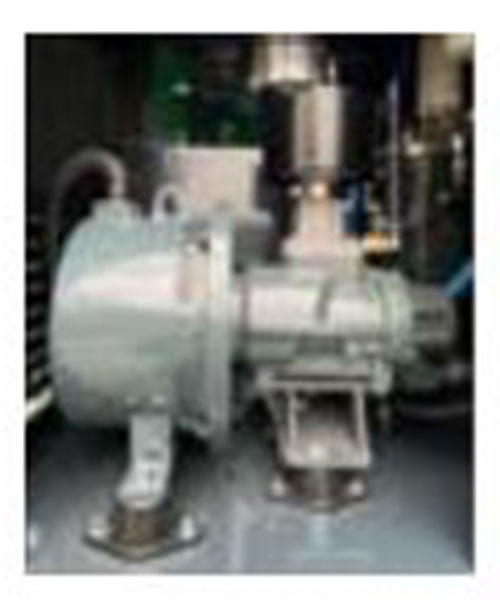

02. Integrated permanent magnet motor and air end

1. Specially made 16Bar Air end, with heavy-duty bearings, high efficiency and long life.
2. IE4 standard High efficiency permanent magnet motor.
3. No unloading time.
4. 100% transmission efficiency

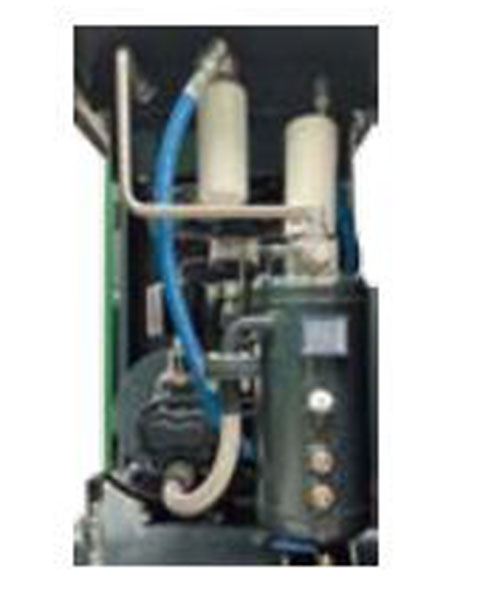

03.Double Air/oil separator system design

1. Built-in large flow Air/oil separator.
2. Spin-on Air/oil separator separates the oil and compressed air again, oil content is low, gas quality is guaranteed.
3. Air/oil Separator life time longer

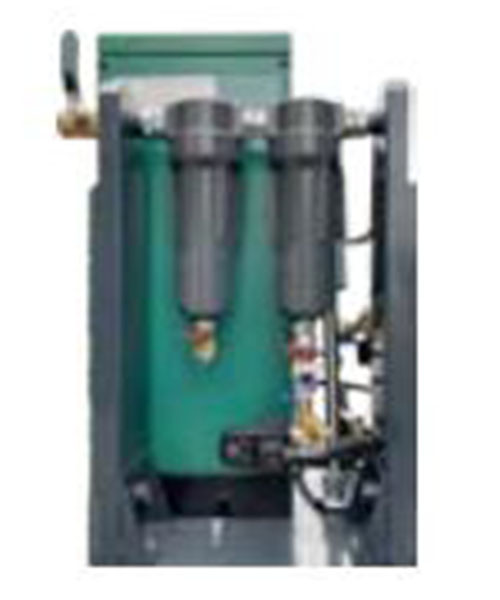

04. Integrated design of Air dryer and filter system

1. Triple pipe filter configuration.
2. The filter has manual and automatic drainage design.
3. Low exhaust water content, gas quality is guaranteed

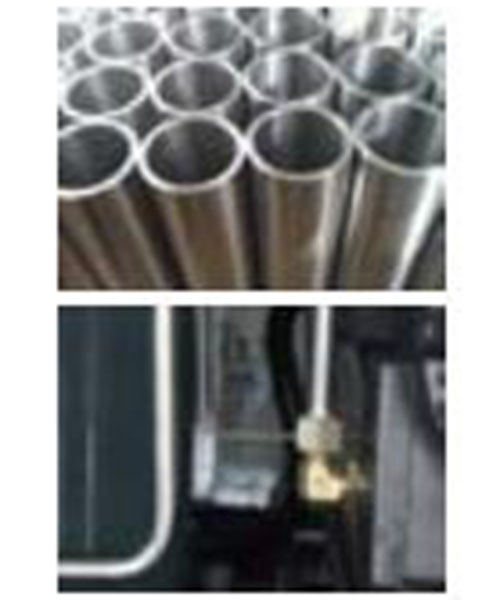

05. Integral piping system

1.Use stainless steel fine tube.
2.Simple structure and nice overall.
3.Never rust, smaller pressure drop.

Seize air strives to help clients to provide high end energy saving air compressors, from 2009, we build our factory with R&D, manufacturing, marketing and service, focusing on energy-saving air compressors, we help clients to provide high efficiency industrial air compressor including diesel air compressors, oil injected air compressors, rotary screw compressors, oil free air compressors,centrifugal compressors,air compressors dryers, air compressors parts with one stop air compressors system to provide the solution of compressed air.Welcome to visit our shanghai factory to find your best partner.

　Laser cutting air compressor we also call it integrated air compressor for industrial air compressors,laser cutting machines are in high demand for the industrial air compressors,these laser cutting air compressor are customize made in various types and sizes. Seize air laser cutting customized energy saving air compressor

we have five features to meet clients'demand for the industrial air compressor
01intelligent frequency conversion control system
02integrated permanent magnet motor and air end
03double air/oil separator system design
04integrated design of air dryer and filter system
05integral piping system

Do you need a good laser cutting air compressor for your industrial air compress contact us to help you get more.
1，Help employees grow,let employees help customers maximize the benefits, provide the ultimate,energy--saving,highly reliable and cost-effective products to contribute to social energy conservation and environmental protection.
2, Come up to the lowest operation cost of compressed air for SEIZE users.
3,Each 1Kw air compressor sold,,it can help customers save about 285USD in electricity bills on average every year ,and save 2.355 tons of carbon emissions for the earth.

Model	Power	Air delivery	Pressure	Outlet pipe size	Weight	Dimension
SJVC-11AF	11	1	1.6	G3/4	600	17807851700
SJVC-15AF	15	1.4	1.6	G3/4	650	17807851700
SJVC-22AF	22	2	1.6	G3/4	780	19308851870
SJVC-11A	11	1	1.6	G3/4	360	9507851150
SJVC-15A	15	1.4	1.6	G3/4	400	9507851150
SJVC-22A	22	2	1.6	G3/4	450	11308851250

Seize air strives to help clients to provide high end energy saving air compressors, from 2009, we build our factory with R&D, manufacturing, marketing and service, focusing on energy-saving air compressors, we help clients to provide high efficiency industrial air compressor including diesel air compressors, oil injected air compressors, rotary screw compressors, oil free air compressors,centrifugal compressors,air compressors dryers, air compressors parts with one stop air compressors system to provide the solution of compressed air.Welcome to visit our shanghai factory to find your best partner.
