Air compressors are the powerhouse of industrial plants. The right industrial air compressor directly affects a factory’s energy efficiency, Air compressors are the powerhouse of industrial plants. Choosing the right industrial air compressor is critical to energy efficiency, cost savings, and stable production. As a leading supplier of energy-efficient air compressors, Seize Air Compressor delivers reliable compressed air solutions for factories worldwide.
⚠️ If the correct parameters are not selected during procurement, factories risk long-term energy waste, rising electricity bills, and unstable production.
1. Core Applications of Air Compressors in Industrial Plants
Air compressors supply compressed air as a power source for countless factory processes:
1.1 Power Supply and Production Processing

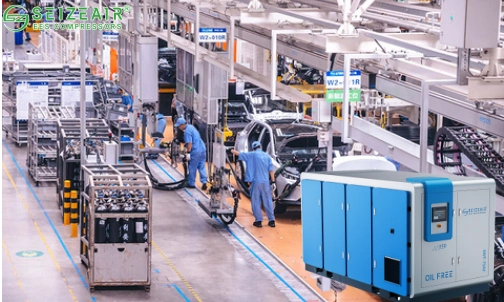

- Pneumatic tool operation: e.g., pneumatic drills, wrenches – widely used in automotive manufacturing and machining.
- Spraying and surface treatment: High-pressure air ensures uniform coating and improved product finish.
- Metal processing and casting: Compressed air supports furnace blowing and sand mold compaction for higher casting accuracy.
1.2 Process Control and Cleaning
- Pneumatic control systems: Drive valves, actuators, and robotic arms with fast response and high reliability.
- Cleaning and dust removal: Airflow removes residues from pipes and equipment, critical for food and pharmaceutical industries.
1.3 High Standards for Specialized Industries

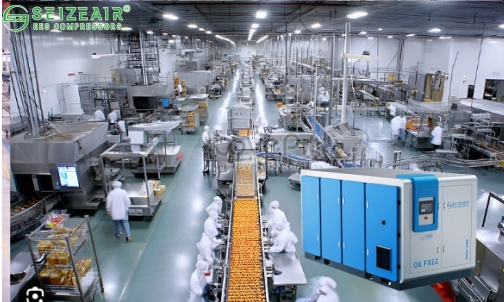

- Medical and food industries: Require oil-free, sterile compressed air (ISO 8573-1 Class 0) to prevent contamination.

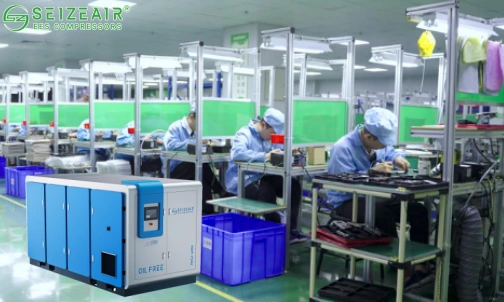

- Electronics manufacturing: Precision chip welding and assembly demand dust-free, dry air to avoid static interference.
2. Risks of Choosing the Wrong Air Compressor
Selecting the wrong compressor not only increases operating costs but can also disrupt production.
2.1 Energy Consumption “Black Hole”
- Oversized compressors waste massive amounts of electricity.
- Case study: An auto parts plant chose a compressor with excessive pressure redundancy (0.2 MPa), leading to 250,000 kWh wasted annually, adding over 200,000 RMB in electricity bills.
- Root cause: Fixed-speed compressors perform poorly under partial loads, while variable frequency models save up to 30%.
2.2 Production Interruptions
- Insufficient airflow lowers pneumatic tool pressure, causing line stoppages.
- Excessive start-stop cycles shorten screw compressor bearing life, sometimes failing within months.
2.3 Hidden Costs
- Low-quality “pseudo energy-saving” models with poor power-to-volume ratios (＞6.8 kW/m³/min) double long-term operating costs.
- Weak after-sales support: Lack of spare parts and service delays extend downtime losses.
3. Scientific Selection: Four Key Parameters
3.1 Gas Demand and Pressure
- Flow rate (m³/min): Peak consumption × 1.2 (redundancy factor).
- Pressure (bar): End-device requirement + pipeline loss (≈0.02 MPa per 100m).
3.2 Energy Efficiency First
- Permanent Magnet Variable Frequency (PM VFD): IE5 motor + frequency control = 25% higher efficiency at 40%–80% load.
- Two-Stage Compression: 15% more efficient than single-stage, ideal for chemical and metallurgy sectors.
3.3 System Compatibility and Smart Monitoring
- Air tanks & dryers: Reduce fluctuations, dew point ≤ -40°C for dry, stable air.
- IoT monitoring (Seize Cloud Platform): Real-time alerts, reducing unplanned downtime by 80%.
3.4 Seize’s Free Selection Service

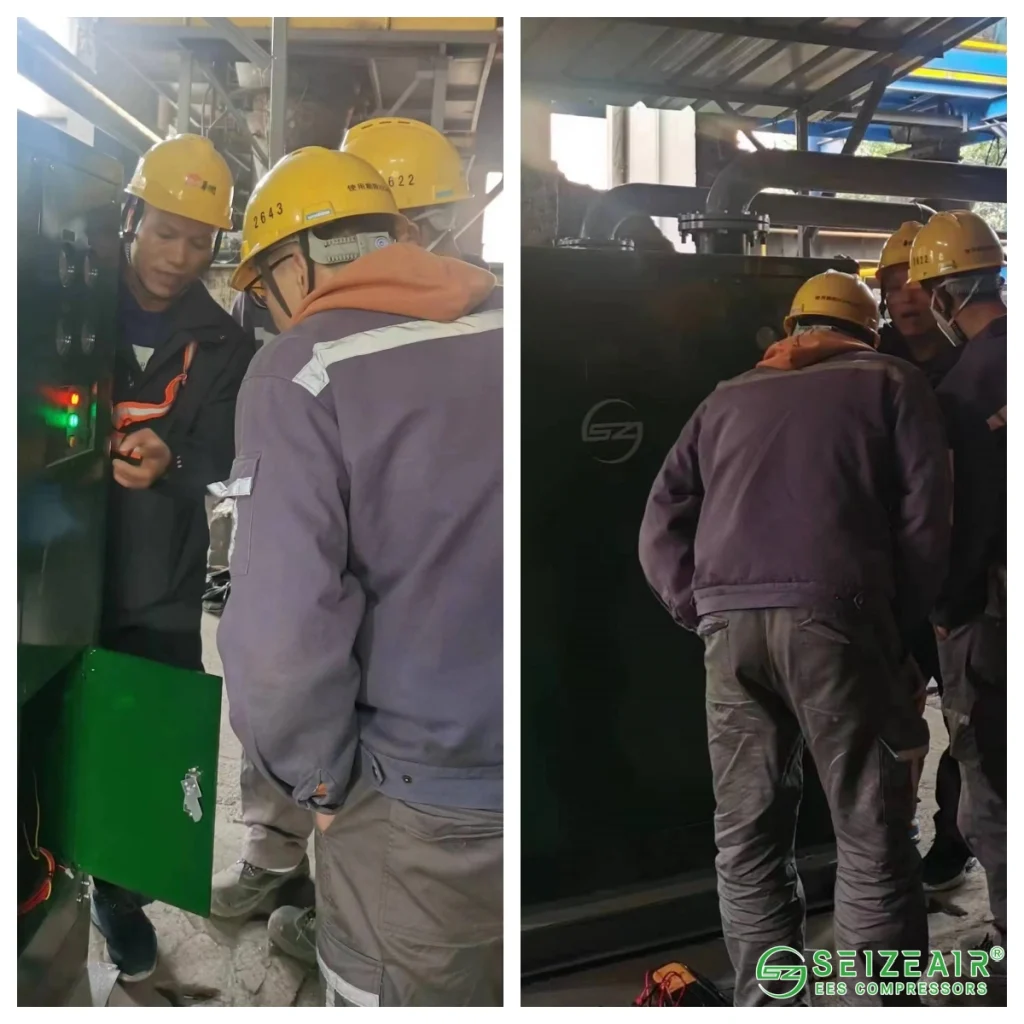

- On-site energy efficiency testing: Free inspection + Energy Saving Analysis Report.
- Customized solutions: Tailored for each industry (e.g., high humidity in textiles, high cleanliness in electronics).
- After-sales commitment: 30-minute response, 95% spare parts availability, global service network.
4. Conclusion: Right Compressor = Right Productivity
Choosing an air compressor is not just about buying equipment—it’s about ensuring productivity, efficiency, and stability.
With cutting-edge technologies like magnetic levitation compressors and oil-free screw compressors, combined with full lifecycle services, Seize Air Compressor helps factories reduce risks, avoid unnecessary costs, and achieve energy goals:
“Save one cent per kilowatt-hour, and protect every cent of profit.”
