oil injected screw air compressor

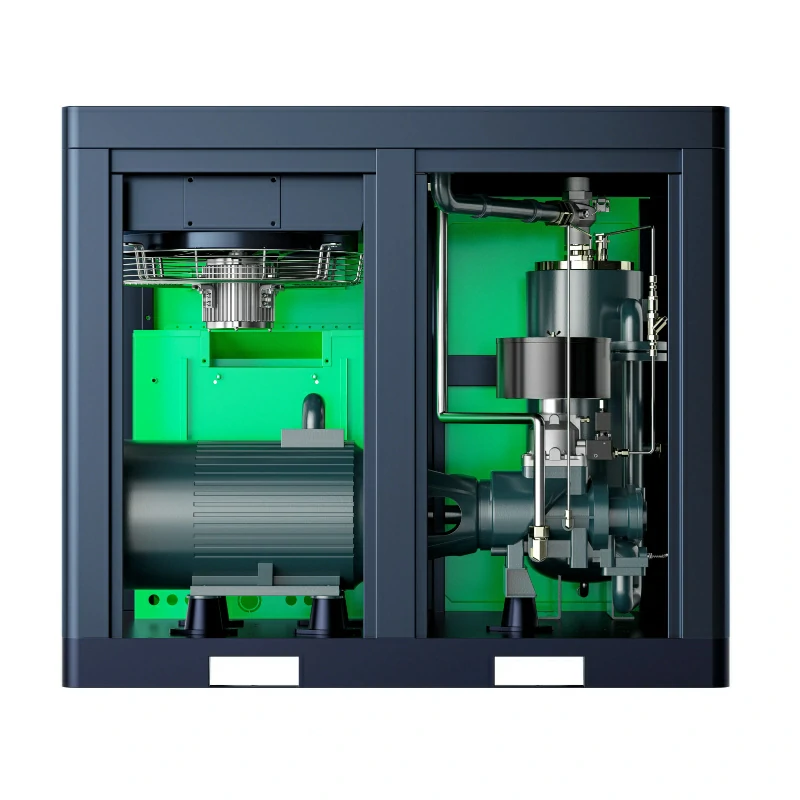

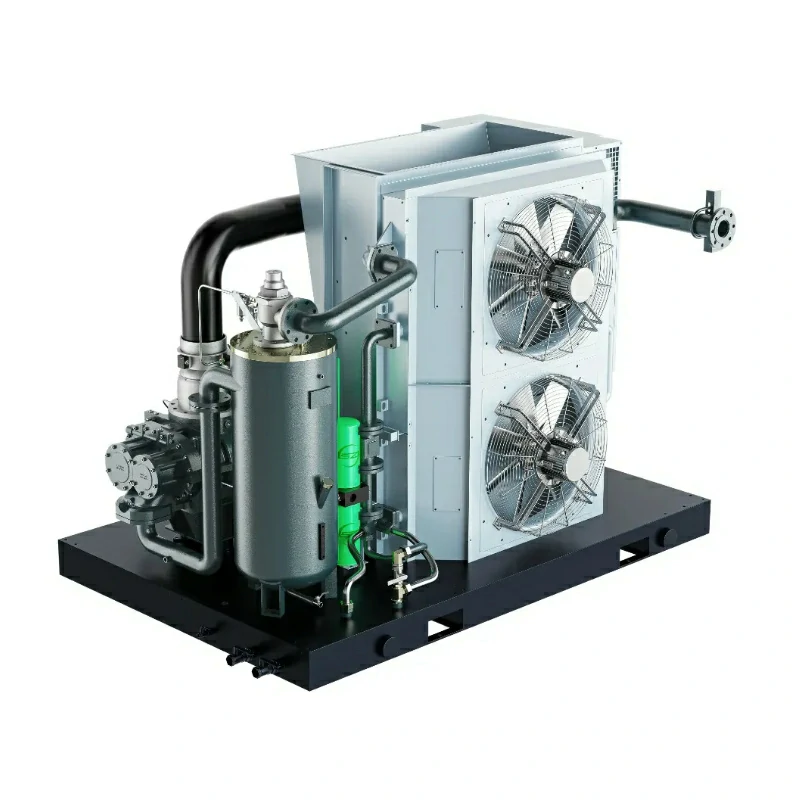

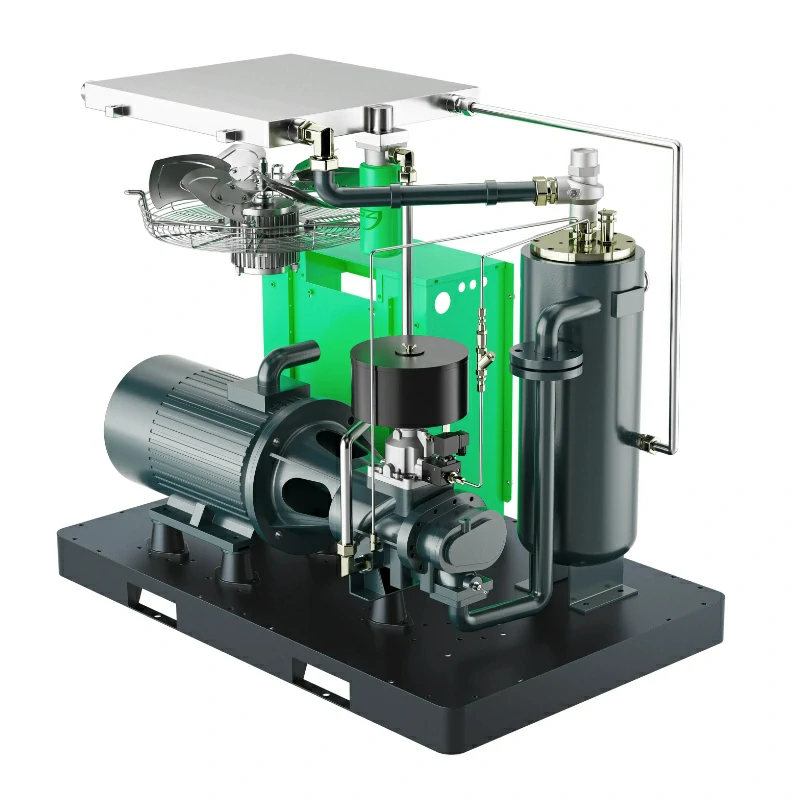

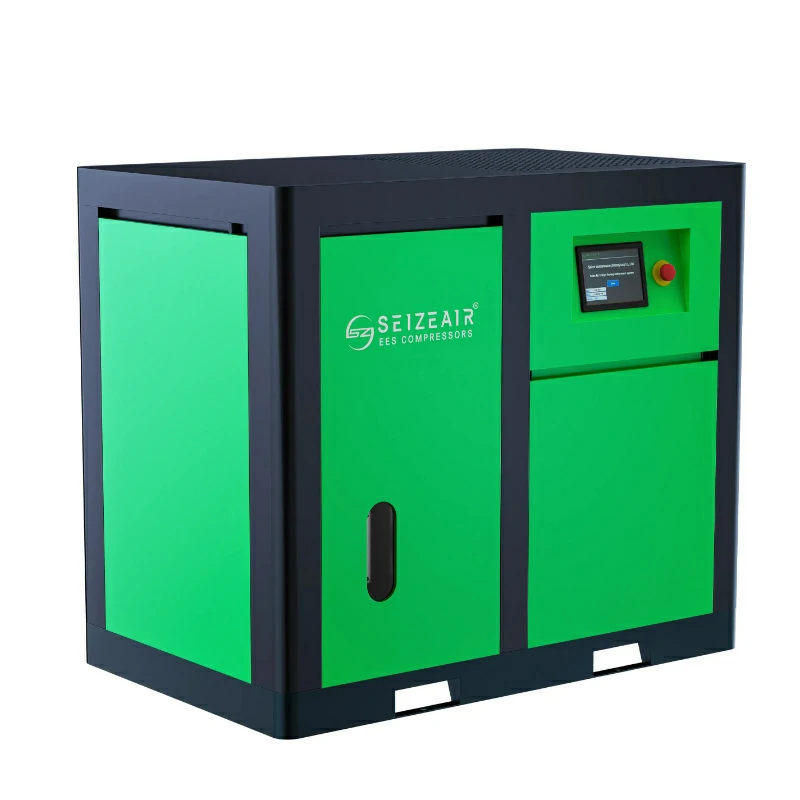

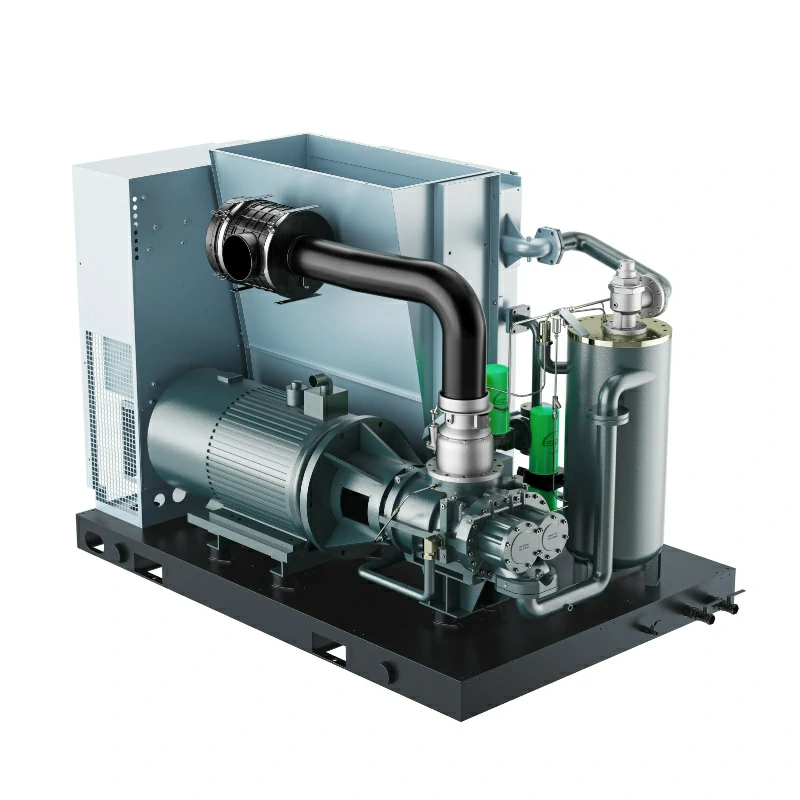

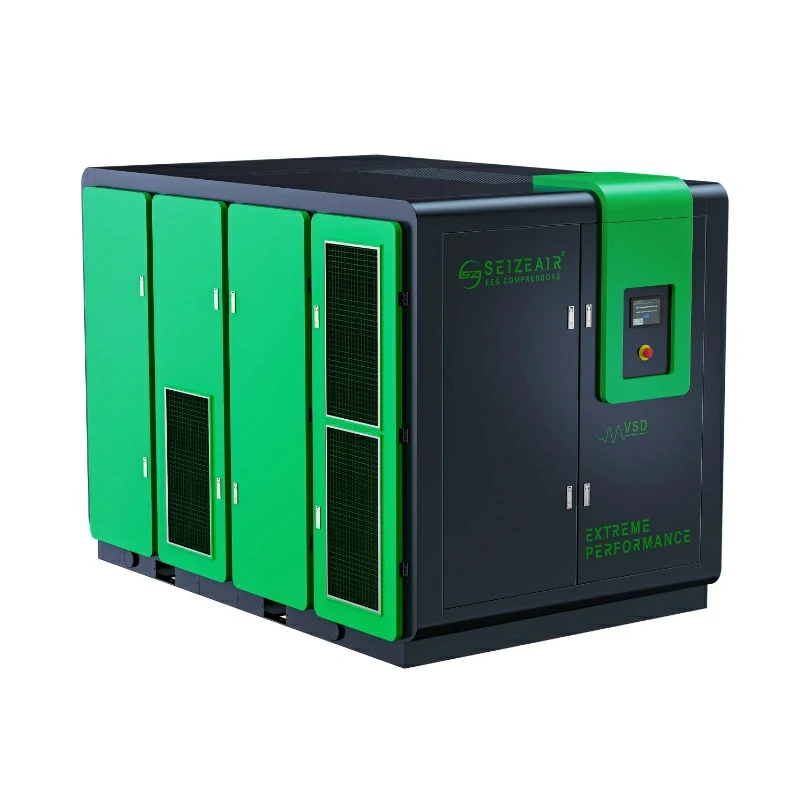

High-efficiency fixed frequency Two Stage screw compressor water cooling（TPM+ Series）
IE4 High Efficiency Motor+Two-Stage
| ⚡ | Power | 45-560kW |
| 💨 | Air outflow | 15-92.3m³/min |
| ⚙️ | Max pressure | 4.5-12.5bar |
Core Components+
System Advantages
IE4 Premium Efficiency（IE5 Optional), Fixed Speed, Single Stage Screw Air Compressor
- High-Efficiency Low-Speed Single Stage Screw Airend
Large rotor, low RPM operation, higher volumetric efficiency - Optimized System Architecture
Oversized component design ensures 30% greater durability and 25% higher thermal efficiency - Top-Exhaust Installation-Ready Design
External suction + upward ventilation (Patent Pending) enables:
✓ Tool-free mounting in ≤500mm clearance
✓ 50% faster deployment than conventional models - Dual-Stage Pre-Filtration System
1μm precision air filters (99.97% efficiency) with:
✓ Magnetic pre-separators for metal particulates
✓ Auto-drainage function protects compressor lifetime - Smart HMI Control Interface
✓ Colorful 7″ touchscreen
✓ Real-time efficiency monitoring
✓ Predictive maintenance alerts
✓ Remote IoT connectivity (4G/WiFi optional) - Dual Intake Filtration
Redundant filtration system provides:
✓ 1μm absolute filtration (99.99% @0.3μm)
✓ 10,000+ hour filter life
Product Parameter
SZ-25PM+~SZ-215PM+
| New Model | Maximum working pressure |
Capacity (FAD) | Motor power | Air Outlet |
Dimensions(mm) | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Bar | Psig | m³min | cfin | Hp | Inch | L | W | H | Kg | ||
| SZ-25PM+ | 7.5 | 109 | 1.50~3.75 | 53.57~133.92 | 18.5 | 25 | G1 | 950 | 850 | 1350 | 450 |
| 8.5 | 123 | 1.42~3.55 | 50.71~126.78 | ||||||||
| 10.5 | 152 | 1.23~3.08 | 44.00~110.00 | ||||||||
| SZ-30PM+ | 7.5 | 109 | 1.74~4.35 | 62.14~155.35 | 30 | G1 | 1000 | 900 | 1420 | 510 | |
| 8.5 | 123 | 1.72~4.30 | 61.43~153.57 | ||||||||
| 10.5 | 152 | 1.48~3.70 | 52.86~132.14 | ||||||||
| SZ-50PM+ | 7.5 | 109 | 3.12~7.80 | 111.43~278.57 | 50 | G11/2 | 1080 | 100 | 1480 | 650 | |
| 8.5 | 123 | 2.98~7.45 | 106.43~266.07 | ||||||||
| 10.5 | 152 | 2.68~6.70 | 95.71~239.28 | ||||||||
| 12.5 | 181 | 1.85~4.62 | 65.26~163.14 | ||||||||
| SZ-60PM+ | 7.5 | 109 | 3.80~9.50 | 135.71~339.28 | 60 | G11/2 | 1400 | 1100 | 1510 | 950 | |
| 8.5 | 123 | 3.64~9.10 | 130.00~325.00 | ||||||||
| 10.5 | 152 | 3.20~8.00 | 114.28~285.71 | ||||||||
| 12.5 | 181 | 2.40~6.00 | 84.75~211.87 | ||||||||
| SZ-75PM+ | 7.5 | 109 | 4.84~12.10 | 172.86~432.14 | 75 | G2 | 1400 | 1100 | 1510 | 1200 | |
| 8.5 | 123 | 4.56~11.40 | 162.86~407.14 | ||||||||
| 10.5 | 152 | 3.84~9.60 | 137.14~342.85 | ||||||||
| 12.5 | 181 | 3.16~7.90 | 112.86~282.14 | ||||||||
| SZ-100PM+ | 7.5 | 109 | 6.72~16.80 | 240.00~600.00 | 100 | G2 | 2100 | 1370 | 1700 | 2000 | |
| 8.5 | 123 | 6.42~16.05 | 229.28~573.21 | ||||||||
| 10.5 | 152 | 5.60~14.00 | 200.00~500.00 | ||||||||
| 12.5 | 181 | 4.72~11.80 | 168.57~421.42 | ||||||||
| SZ-120PM+ | 7.5 | 109 | 6.00~20.00 | 211.90~706.30 | 120 | DN65 | 2300 | 1550 | 1900 | 2400 | |
| 8.5 | 123 | 5.70~19.00 | 201.30~671.00 | ||||||||
| 10.5 | 152 | 5.00~16.50 | 176.60~582.70 | ||||||||
| 12.5 | 181 | 3.90~13.00 | 137.70~459.10 | ||||||||
| SZ-150PM+ | 7.5 | 109 | 7.35~24.50 | 259.60~865.20 | 110 | 150 | DN80 | 2900 | 1890 | 1950 | 2800 |
| 8.5 | 123 | 7.20~24.00 | 254.30~847.60 | ||||||||
| 10.5 | 152 | 6.30~21.00 | 222.50~741.60 | ||||||||
| 12.5 | 181 | 4.80~16.00 | 169.50~565.00 | ||||||||
| SZ-175PM+ | 7.5 | 109 | 9.00~30.00 | 317.80~1059.40 | 132 | 175 | DN100 | 2900 | 1890 | 2050 | 3500 |
| 8.5 | 123 | 8.40~28.00 | 296.60~988.80 | ||||||||
| 10.5 | 152 | 6.90~23.00 | 243.70~812.20 | ||||||||
| 12.5 | 181 | 5.70~19.00 | 201.30~671.00 | ||||||||
| SZ-215PM+ | 7.5 | 109 | 10.05~33.50 | 354.90~1183.00 | 160 | 215 | DN100 | 2900 | 1890 | 2050 | 4000 |
| 8.5 | 123 | 9.30~31.00 | 328.40~1094.80 | ||||||||
| 10.5 | 152 | 8.10~27.00 | 286.00~953.50 | ||||||||
| 12.5 | 181 | 6.60~22.00 | 233.10~776.90 | ||||||||
SZ-8D~SZ-100D(W)
| New Model | Maximum working pressure |
Capacity (FAD) | Motor power | Air Outlet |
Dimensions (mm) | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Bar | Psig | m³min | cfim | Kw | Hp | Inch | L | W | H | Kg | |
| SZ-8D | 7.0 | 102 | 0.90 | 31.77 | 5.5 | 7.5 | G3/4 | 760 | 760 | 1065 | 320 |
| 8.0 | 116 | 0.85 | 30.01 | ||||||||
| 10.0 | 145 | 0.75 | 26.48 | ||||||||
| 12.5 | 181 | 0.45 | 15.89 | ||||||||
| SZ-10D | 7.0 | 102 | 1.20 | 42.36 | 7.5 | 10 | G3/4 | 760 | 760 | 1065 | 350 |
| 8.0 | 116 | 1.10 | 38.83 | ||||||||
| 10.0 | 145 | 1.00 | 35.30 | ||||||||
| 12.5 | 181 | 0.80 | 28.24 | ||||||||
| SZ-15D | 7.0 | 102 | 1.90 | 67.07 | 11 | 15 | G3/4 | 1200 | 750 | 1050 | 450 |
| 8.0 | 116 | 1.80 | 63.54 | ||||||||
| 10.0 | 145 | 1.50 | 52.95 | ||||||||
| 12.5 | 181 | 1.10 | 38.83 | ||||||||
| SZ-20D | 7.0 | 102 | 2.70 | 95.31 | 15 | 20 | G3/4 | 1200 | 750 | 1050 | 500 |
| 8.0 | 116 | 2.60 | 91.78 | ||||||||
| 10.0 | 145 | 2.50 | 88.25 | ||||||||
| 12.5 | 181 | 1.70 | 60.01 | ||||||||
| SZ-30D | 7.0 | 102 | 3.70 | 130.61 | 22 | 30 | G1 | 1350 | 850 | 1170 | 600 |
| 8.0 | 116 | 3.50 | 123.55 | ||||||||
| 10.0 | 145 | 3.40 | 120.02 | ||||||||
| 12.5 | 181 | 2.40 | 84.72 | ||||||||
| SZ-50D | 7.0 | 102 | 6.50 | 229.45 | 37 | 50 | G11/2 | 1580 | 920 | 1220 | 1200 |
| 8.0 | 116 | 6.30 | 222.39 | ||||||||
| 10.0 | 145 | 6.20 | 218.86 | ||||||||
| 12.5 | 181 | / | / | ||||||||
| SZ-75D (W) |
7.0 | 102 | 10.80 | 381.24 | 55 | 75 | G2 | 1700 | 1180 | 1650 | 1500 |
| 8.0 | 116 | 10.60 | 374.18 | ||||||||
| 10.0 | 145 | 1 | / | ||||||||
| 12.5 | 181 | 6.50 | 229.45 | ||||||||
| SZ-100D (W) |
7.0 | 102 | 12.50 | 441.25 | 75 | 100 | G2 | 1850 | 1250 | 1650 | 1800 |
| 8.0 | 116 | 12.20 | 430.66 | ||||||||
| 10.0 | 145 | 12.00 | 423.60 | ||||||||
| 12.5 | 181 | 10.60 | 374.18 | ||||||||
