Optimizing your factory floor to maximize air compressor energy savings starts with replacing outdated fixed-speed units with variable speed drive (VSD) technology. Traditional systems waste huge amounts of electricity by running at maximum speed even when your tools are idle. By automatically matching motor output to your actual real-time air demands, a VSD system cuts energy bills by up to 50%, scales down operational overhead, stabilizes plant air pressure, and significantly reduces equipment wear.
What Causes the Most Energy Waste in Industrial Compressed Air Systems?
To capture genuine air compressor energy savings, you have to target the hidden operational drains that standard equipment ignores. A traditional fixed-speed compressor operates on a rigid, all-or-nothing cycle. It runs at full capacity until it hits maximum pressure, then enters an “unloaded” state.
During this unloaded period, the motor continues to spin at full RPM without producing any usable air. This phase typically consumes 20% to 40% of the machine’s full-load power. For facilities with varying production schedules, this translates directly to paying for wasted electricity.
Additionally, standard systems suffer from:
- Artificial demand: Operating at higher pressures than necessary just to create a safety buffer.
- Massive inrush current: Power spikes up to 8 times higher than normal operating currents during a hard start.
- Unregulated air leaks: Higher line pressures accelerate systemic leaks across the factory floor.
How Does a Variable Speed Drive Reduce Air Compressor Power Consumption?
A Variable Speed Drive uses a specialized frequency inverter to continuously adjust the compressor’s motor speed. Instead of turning on and off or running constantly at maximum RPM, the VSD system responds directly to your plant’s live downstream air usage.
The system relies on an ongoing digital feedback loops:
- An internal pressure sensor reads changes in the system pressure.
- If demand drops, line pressure begins to rise slightly.
- The sensor alerts the VSD controller, which reduces the electrical frequency sent to the motor.
- The motor slows down smoothly, matching the lower production rate.
- When a large pneumatic tool is activated, the process reverses instantly to keep pressure steady.
This fluid adaptation is how a VSD achieves deep industrial air compressor electricity reduction. You only pay for the compressed air your team actually consumes at any given second.
What is the Average ROI and Payback Period for a VSD Compressor Upgrade?
Because electricity accounts for roughly 70% to 80% of the total lifecycle cost of an industrial compressor, a VSD upgrade is highly cost-effective. Upfront capital expenses are quickly offset by monthly utility cuts.
| Compressor Setup | Average Power Load at 60% Demand | Yearly Electricity Costs | Mechanical Stress & Wear Rate |
| Fixed-Speed (Load/Unload) | ~85% of max rated power | High | High (Frequent hard cycling) |
| Variable Speed Drive (VSD) | ~62% of max rated power | Low | Low (Smooth soft-starting) |
Most manufacturing plants realize a complete return on investment (ROI) within 12 to 24 months. Premier brands like Seize Air design highly efficient VSD units engineered to speed up this payback period, ensuring your capital investment transforms into pure operational savings as quickly as possible.
How Do You Calculate Life Cycle Cost for Variable Speed Air Compressors?
A common mistake in procurement is focusing purely on the sticker price of a new machine. To calculate the true financial impact, smart operators look at the comprehensive Life Cycle Cost (LCC) equation:
LCC = Upfront Purchase Price + Lifetime Maintenance + Lifetime Energy Consumption
Because energy consumption represents the overwhelming majority of this total, buying a cheaper, inefficient fixed-speed unit actually costs significantly more over its operational life than buying a premium VSD model.
By choosing advanced engineered solutions from manufacturers like Seize Air, businesses can trim the largest part of that expenditure chart, saving tens of thousands of dollars per machine over a ten-year cycle.
What Are the Mechanical Benefits of Using a VSD Air Compressor?
The financial perks of VSD technology go beyond your electricity bill. The physical mechanics of how a variable drive handles power distribution adds years to the life of your equipment.
Soft-Starting vs. Inrush Currents
A fixed-speed unit experiences severe mechanical shock and a massive electrical surge every time it kicks on from a dead stop. A VSD completely eliminates this via a controlled “soft-start.” The inverter gradually brings the motor from 0 RPM up to speed over several seconds.
This controlled start provides vital physical protections:
- Zero electrical grid strain: Prevents voltage sags that trip other equipment or trigger peak-demand utility penalties.
- Minimized mechanical stress: Protects gears, bearings, and screw elements from harsh torque transitions.
- Longer component life: Extends the working windows for expensive seals, belts, and couplings.
Can a VSD Air Compressor Fix Plant Pressure Fluctuations?
In precision fields like electronics, automated packaging, or pharmaceutical manufacturing, dropping line pressure can disrupt sensitive pneumatic components and ruin entire batches of product.
Fixed-speed compressors rely on wide pressure bands (often 1.0 to 1.5 bar) to limit how often the motor cycles on and off. This forces you to artificially over-pressurize your lines to ensure pressure never drops below the absolute minimum required by your machines.
A VSD unit holds plant line pressure within a remarkably tight tolerance of just plus or minus 0.1 bar. This absolute stability allows you to safely lower your overall system pressure setting. This is critical because every 1 bar reduction in system pressure yields an immediate 7% savings in total compressor energy input.

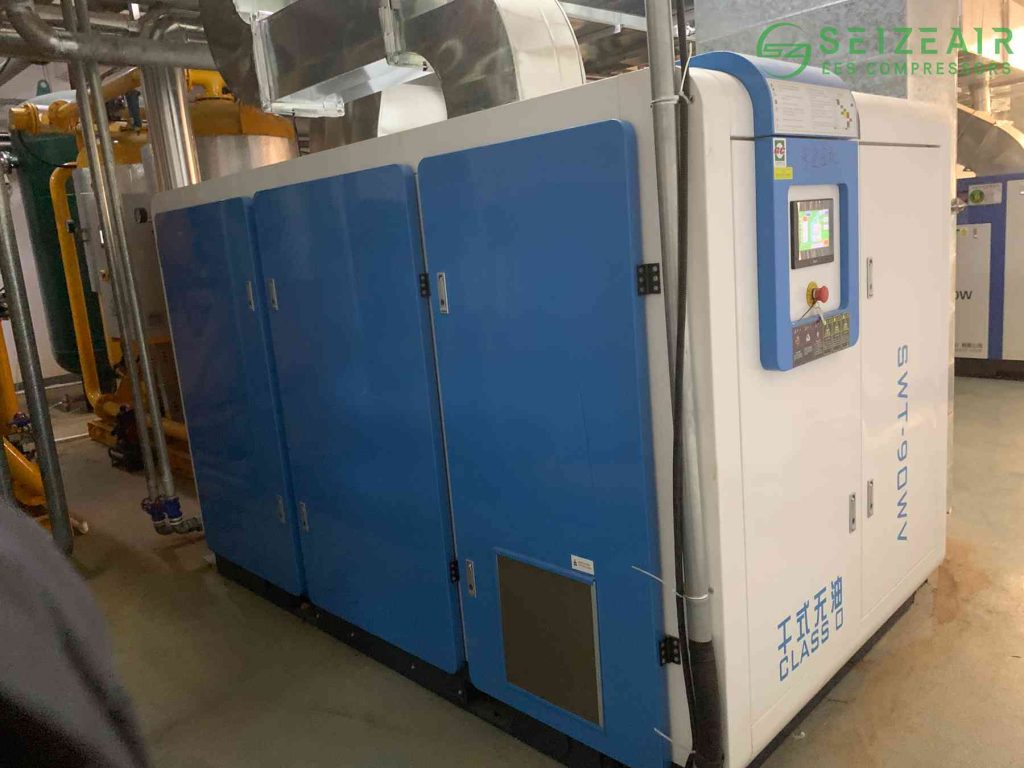

How Much Carbon Footprint Reduction Comes From VSD Upgrades?
Industrial energy management is a major focus for corporate sustainability goals, strict environmental audits, and carbon reduction mandates. Because industrial power grids are still heavily reliant on fossil fuels, reducing electricity waste lowers carbon dioxide output.
Integrating a high-efficiency VSD air compressor is a reliable step toward hitting carbon reduction targets. Utilizing advanced systems from dedicated providers like Seize Air makes it simple to meet strict energy codes, pass ISO 50001 audits, and demonstrate your company’s commitment to green, sustainable manufacturing practices.
When Is a Fixed-Speed Compressor Better Than a VSD System?
While VSD technology is highly efficient, its value depends directly on how your facility uses air. It is not an automated fix for every single mechanical layout.
When VSD Shines:
- Plants operating multi-shift schedules with fluctuating production demands.
- Operations relying on intermittent batch processing or irregular tool usage.
- Facilities experiencing seasonal demand peaks and valleys.
When Fixed-Speed Works:
If your plant runs a continuous, 24/7 manufacturing line that draws a completely flat, unchanging 100% maximum air volume, a properly sized fixed-speed compressor is highly efficient at that exact full-load point. However, true static demand is incredibly rare in modern factories.
| Application Environment | Demand Characteristics | Recommended System Layout |
| Precision Electronics | Highly variable based on station run-times | 100% VSD Configuration |
| Continuous Plastics Extrusion | Flat-line, high-volume constant draw | Base Fixed-Speed with VSD Trim Unit |
| Food & Beverage Packaging | Cyclical shifts and washdown periods | VSD Compressor System |
How Do You Use a Compressed Air Energy Savings Calculator Formula?
You can calculate your estimated savings before scheduling an official site audit by tracking your compressor’s running hours against your local utility rates.
1. Identify Your Fixed-Speed Baseline
Assume a 90 kW standard compressor runs 4,000 hours per year. Plant logs show it runs loaded 60% of the time and unloaded 40% of the time.
- Loaded Energy Drawn: 90 kW
- Unloaded Energy Drawn: 90 kW x 30% = 27 kW
2. Compute Total Annual Kilowatt-Hours (kWh)
- Loaded Consumption: 4,000 hours x 60% x 90 kW = 216,000 kWh
- Unloaded Consumption: 4,000 hours x 40% x 27 kW = 43,200 kWh
- Total Current Footprint = 259,200 kWh per year
3. Compute the VSD Alternative
The VSD eliminates the idle unloaded waste by adapting directly to the 60% average load, factoring in a minor 3% inverter efficiency adjustment.
- VSD Power Draw at 60% Load: 90 kW x 60% x 1.03 = 55.62 kW
- Total VSD Annual Footprint: 4,000 hours x 55.62 kW = 222,480 kWh per year
4. Final Savings Breakdown
- Total Power Saved: 259,200 kWh – 222,480 kWh = 36,720 kWh
- At an average industrial utility cost of $0.12 per kWh, this change delivers a direct savings of $4,406.40 every year from a single compressor unit.
