Choosing a high-volume air compressor supplier is not a simple procurement task; it’s a foundational decision for your facility’s operational DNA. When your production line consumes thousands of cubic feet of air per minute, the machine is no longer a peripheral utility—it is the heartbeat of your enterprise. A high-volume system must balance the raw power of delivery with the delicate economics of energy consumption.

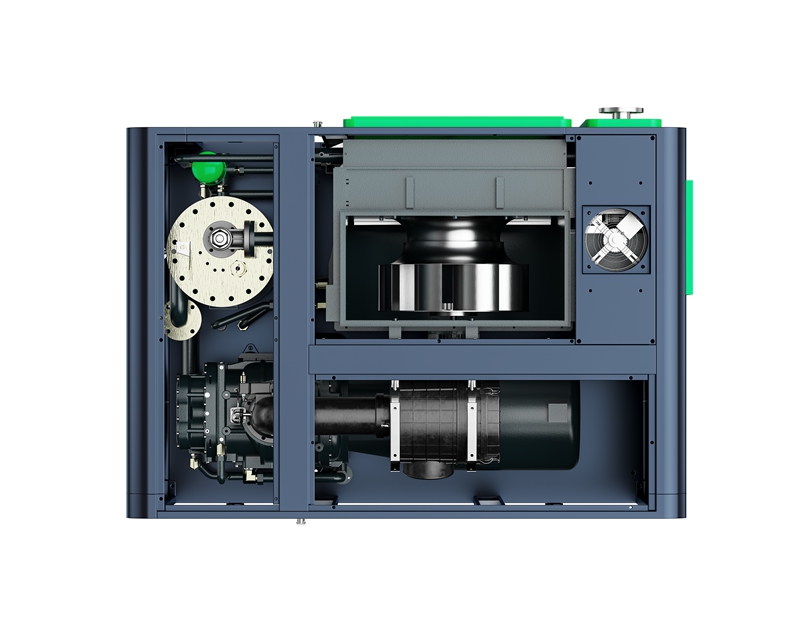

1. Why is a Two Stage Screw Compressor Essential for High-Volume Needs?

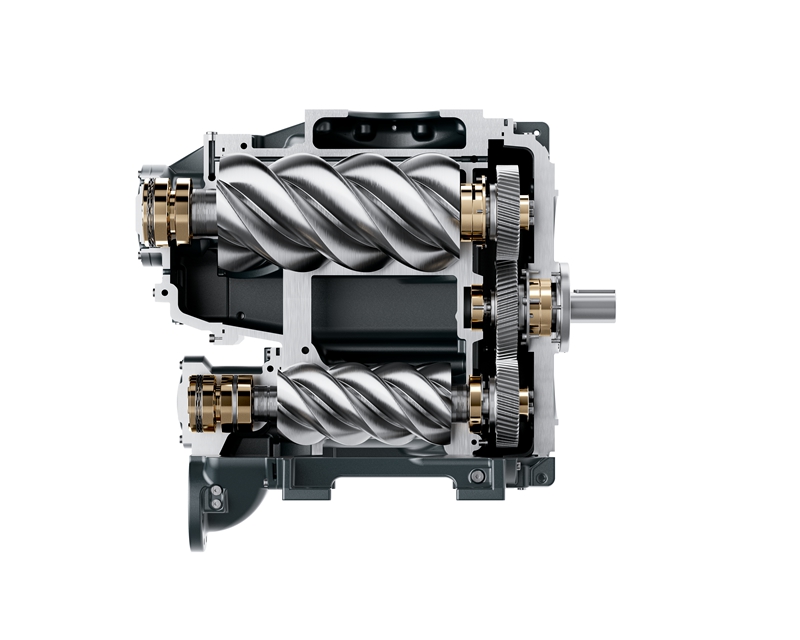

In the world of high-flow applications, the single-stage compression cycle often hits a “thermal wall.” When you compress air to 7 or 8 bar in one shot, the discharge temperature skyrockets, leading to massive energy loss and increased wear on the rotary screw air end.
- The Physics of Efficiency: By splitting the compression ratio between two distinct sets of rotors, a two stage screw compressor reduces the internal leakage (slip) and lowers the work required for each stage.
- Inter-cooling Advantage: Between the first and second stages, the air is cooled. This increases the air density, allowing the second stage to compress a higher mass of air with less mechanical effort.
- Seize Engineering Insight: High-end manufacturers like Seize utilize a “curtain-type” cooling arrangement in their two-stage units. This ensures that the temperature rise stays within a narrow, predictable band, effectively turning energy that would have been wasted as heat back into usable air pressure.
| Feature | Single-Stage System | Two-Stage System |
| Compression Ratio | High (1:8) | Low (Stage 1: 1:3 |
| Energy Savings | Baseline | 12% – 15% Higher |
| Rotor Longevity | Standard | Extended (Lower Bearing Load) |
| Discharge Temp | 85°C – 100°C | 70°C – 80°C |

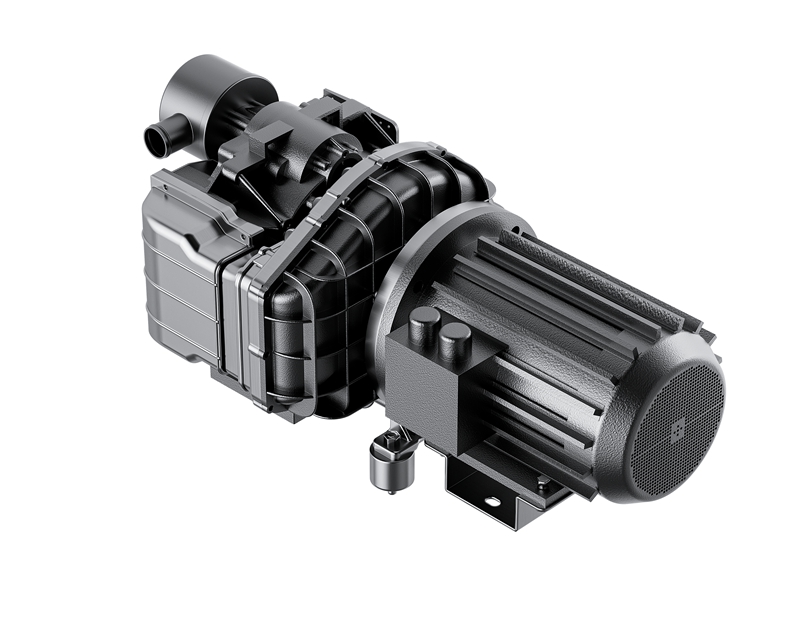

2. Is a Permanent Magnet Screw Compressor Worth the Investment?
The transition from traditional induction motors to permanent magnet screw compressor technology is perhaps the biggest leap in industrial efficiency in the last decade. If your air compressor supplier is still pushing heavy, oversized asynchronous motors for variable loads, you are likely overpaying for electricity.
- Beyond Induction: Permanent magnet (PM) motors do not require “excitation current” to start, meaning they maintain nearly 95-97% efficiency even at low speeds.
- Variable Speed Integration: A PM motor paired with a high-quality VSD (Variable Speed Drive) allows the machine to track your factory’s air demand with surgical precision. If your CNC machines stop for a shift change, a Seize PM VSD unit slows down instantly, consuming only the bare minimum of power.
- Direct Drive Reliability: Most PM units eliminate the need for belts or gears. By coupling the motor directly to the male rotor, you remove 2-3% of transmission loss and eliminate a major maintenance point.
3. How to Evaluate an Energy Efficient Compressor Beyond the Brochure?
Every air compressor supplier claims to be “green,” but air compressor energy saving is a measurable science, not a marketing slogan. To find a truly high efficiency air compressor, you must look at the “Specific Power” ($kW/m^3/min$).
- The $kW/m^3/min$ Metric: This tells you exactly how much electricity you are “paying” for every cubic meter of air delivered. For a high-volume unit, a difference of just 0.5 in specific power can mean $10,000 in annual energy savings.
- Part-Load Performance: Many machines are efficient at 100% load but become “energy hogs” at 60% load. Ask for the efficiency curve. An energy efficient compressor should have a flat curve across the 50% to 100% range.
- Pressure Stability: An efficient system maintains a tight pressure band (e.g., ±0.1 bar). If your system pressure swings wildly, your machines are likely “over-compressing” to compensate, which wastes 7% of energy for every 1 bar of excess pressure.

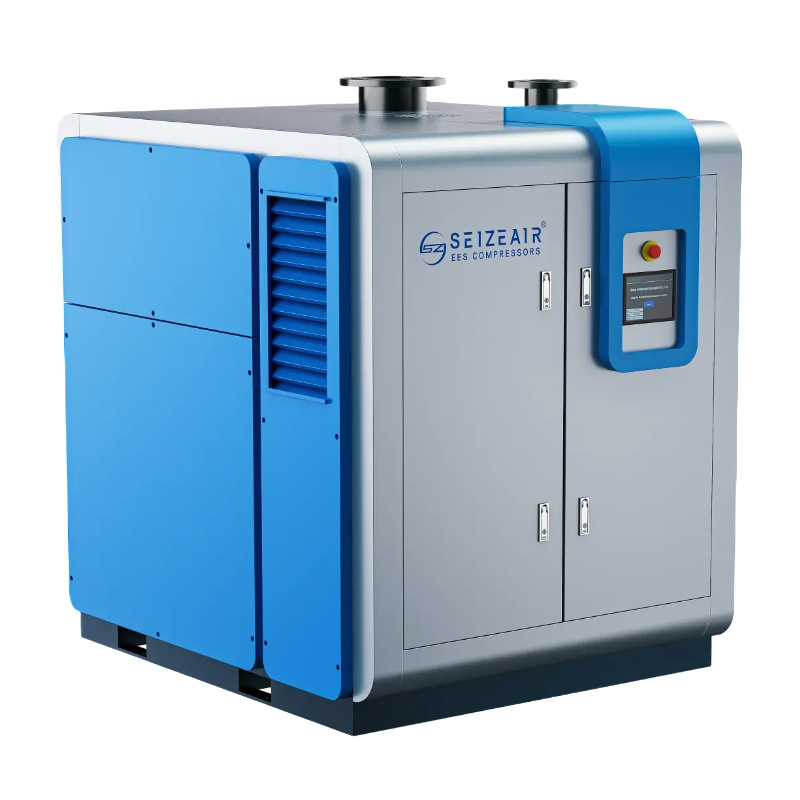

4. When is an Oil Free Centrifugal Compressor the Right Choice?
For massive volumes—where flow requirements exceed 50 $m^3/min$—the oil free centrifugal compressor often replaces the screw technology. This is especially true in industries like electronics, pharmaceuticals, and large-scale food processing.
- Absolute Purity: Centrifugal technology is inherently oil-free. There is no contact between the compression impellers and the air stream, ensuring ISO 8573-1 Class 0 air quality.
- Dynamic Compression: Unlike the “positive displacement” of a screw, a centrifugal unit uses high-speed impellers to add kinetic energy to the air. It is the gold standard for continuous, high-volume base-load demand.
- Maintenance Profile: While the initial industrial air compressor for sale price for a centrifugal unit is higher, the maintenance is often simpler because there are fewer wearing parts (no rotors touching, no oil filters in the air stream).
| Industry | Volume Requirement | Preferred Technology |
| Textile Spinning | High (Constant) | Two-Stage Fixed Speed / PM VSD |
| Semiconductor | High (Ultra-Clean) | Oil-Free Centrifugal / Oil-Free Screw |
| Automotive Paint | Medium-High (Variable) | PM VSD Screw |
| Mining | High (Dirty/Rugged) | Heavy Duty Direct Drive Screw |
5. How Does a Silent Industrial Compressor Affect Factory Productivity?
High-volume air usually comes with high-volume noise. However, modern workplace safety standards (and employee fatigue) have made the silent industrial compressor a top priority for facility managers.
- Enclosure Engineering: A premium air compressor supplier invests in thick, sound-dampening cabinetry and vibration isolation pads.
- Low RPM Advantage: The secret to silence is often the speed of the rotors. Machines like those from Seize use larger air ends that rotate at lower RPMs to deliver the same volume. Lower speed equals lower vibration and a much lower decibel (dB) rating.
- Intake Silencing: Much of the noise comes from the air being sucked into the machine. Specialized intake silencers can reduce the “pulsation” noise that often travels through the factory ductwork.
6. What Factors Dictate the VSD Air Compressor Price?
When comparing VSD air compressor price quotes, you aren’t just paying for the inverter. You are paying for the integration of the motor, the drive, and the controller.
- Inverter Quality: Is the VSD a generic component or a heavy-duty industrial drive designed for high-heat environments?
- Harmonic Filtration: High-volume VSDs can create electrical “noise” in your factory’s power grid. Quality suppliers include built-in reactors to protect your other sensitive CNC equipment.
- The “Turn-Down” Ratio: A cheap VSD might only be able to slow down to 40% of its speed before overheating. A high-performance Seize unit can often safely operate down to 15-20% capacity, providing massive savings during low-production hours.
Engineer’s Note: If your plant runs 24/7 at a flat 100% load, the VSD may not be necessary. However, almost no factory has a perfectly flat demand. Always ask for a 7-day data logging audit before finalizing the purchase.
7. How to Ensure Long-Term Reliability of a High Pressure Air Compressor?
If your application requires high pressure air compressor systems (e.g., 15 bar to 40 bar for PET blowing), the stakes for manufacturer quality are even higher. High pressure means higher internal temperatures and higher stress on every seal.
- Seal Material: Viton and other high-spec synthetic seals are mandatory.
- Cooling Reserve: A high-pressure unit should have at least a 20% “cooling reserve” in its radiator design. This prevents the machine from tripping on “High Discharge Temperature” during the summer months.
- Component Origin: Ask where the bearings come from. Brands like Seize utilize SKF or equivalent premium bearings to ensure that the increased axial thrust of high-pressure operation doesn’t lead to a premature air end rebuild.
Selecting the right air compressor supplier involves peeling back the layers of marketing to see the engineering beneath. Whether you need the absolute purity of an oil free centrifugal compressor or the extreme energy savings of a two stage screw compressor, your focus should remain on the 10-year Total Cost of Ownership. By prioritizing Specific Power, low-RPM design, and robust after-sales support, you turn your compressed air system into a competitive advantage.
