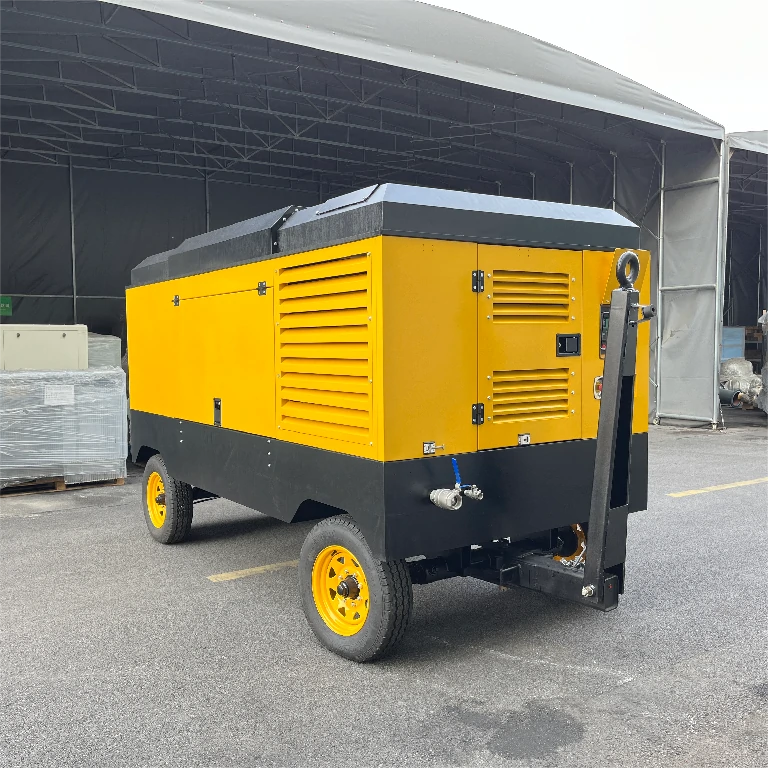

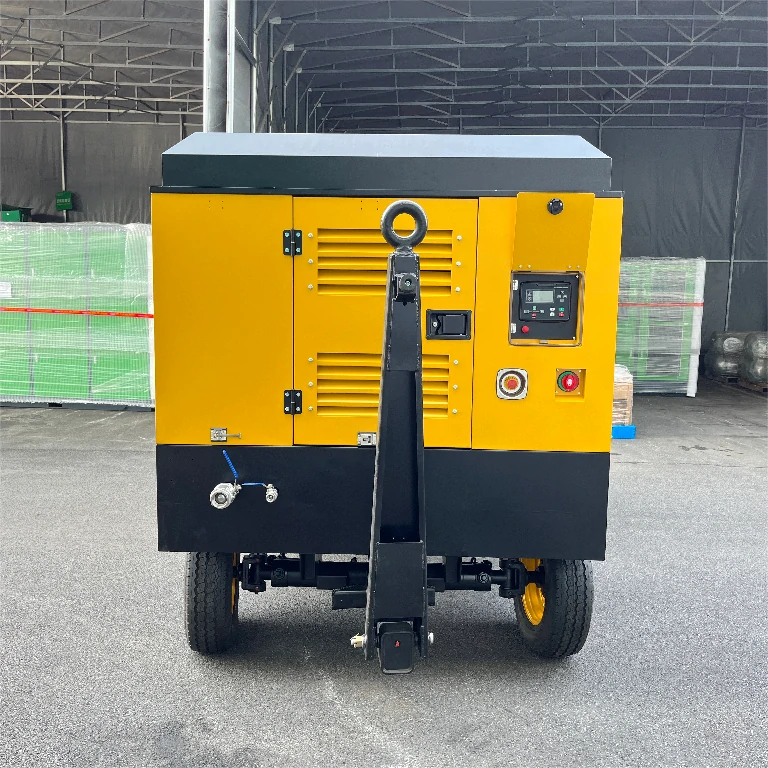

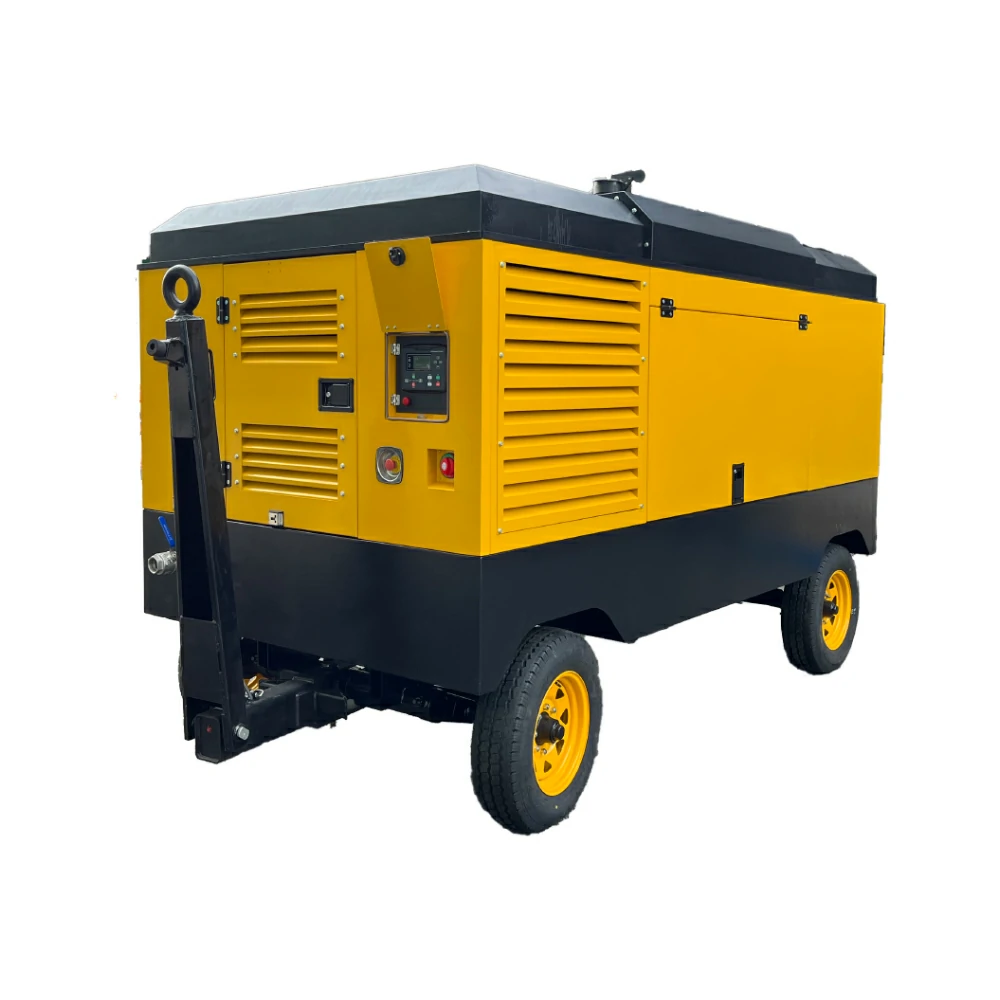

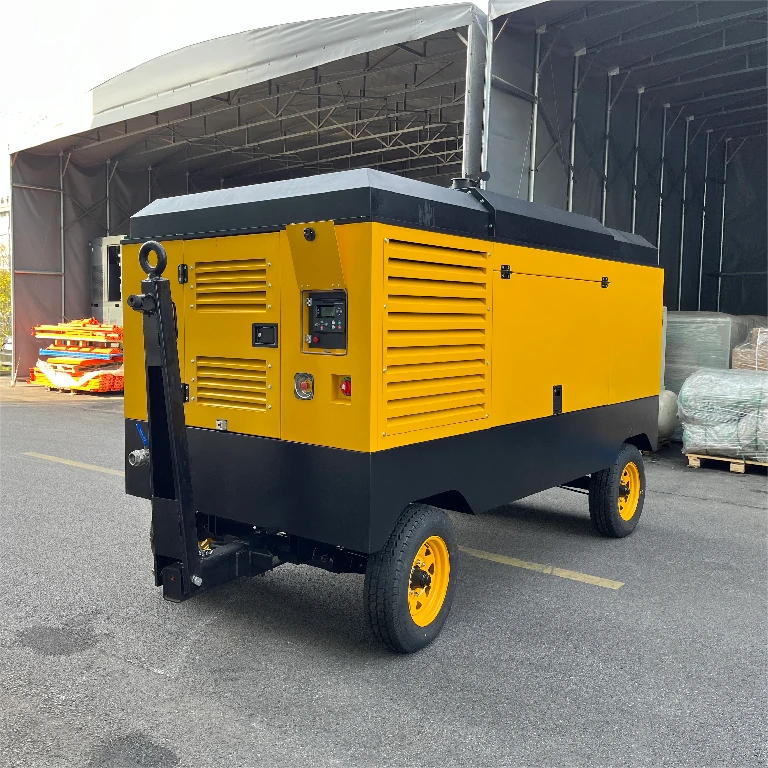

Diesel Mobile Compressor Single Stage

Permanent magnet variable frequency single-stage screw air compressor

Diesel Mobile Compressor Single Stage（SDP Series）

IE4 Premium Efficiency（IE5 Optional）, Low-Noise,PM Motor(IP65),Dual VSD

	Power	36.5-295KW
	Air outflow	3-33m³/min
	Max pressure	7-14.5bar

Product Parameter

分页表格

SDP-3/7V~SDP-33/10

Model	Capacity		Working Pressure		Engine	Weight （kg）	Dimensions mm	Compressed Air Outlet	Weld QTY
Model	m3/min	Cfm	Bar	PSi	Engine	Weight （kg）	Dimensions mm	Compressed Air Outlet	Weld QTY
SDP-3/7V	3	105	7	100	Kubota 36.5kW	900	2350 x 1600 x 1500	G3/4×2	2
SDP-3.5/8V	3.5	120	8	115	Kubota 36.5kW	900	2350 x 1600 x 1500	G3/4×2	2
SDP-4/7V	4	140	7	100	Kubota 36.5kW	900	2350 x 1600 x 1500	G3/4×2	2
SDP-5/7V	5	175	7	100	Kubota 36.5kW	900	2350 x 1600 x 1500	G3/4×2	2
SDP-5/8V	5	175	8	115	Kubota 36.5kW	900	2350 x 1600 x 1500	G3/4×2	2
SDP-5/8X	5	175	8	115	FAWDE 36.8kW	820	2500 x 1580 x 1500	G1*1 x1 G1/2×1	2
SDP-6/7X	6	210	7	100	FAWDE 55kW	1380	3200 x 1700 x 1760	G1 1/4*1 x3 G3/4×1	2
SDP-7.5/7X	7.5	265	7	100	FAWDE 55kW	1450	3200 x 1700 x 1760	G1 1/4*1 x3 G3/4×1	2
SDP-8/8	8	280	8	115	YUCHAI 70kW	1550	3300 x 1800 x 1800	G1 1/4*1 x3 G3/4×1	2
SDP-8.5/8	8.5	300	8	115	YUCHAI 70kW	1600	3300 x 1800 x 1800	G1 1/4*1 x3 G3/4×1	2
SDP-10/7	10	350	7	100	YUCHAI 88kW	1700	3300 x 1800 x 1800	G1 1/4*1 x3 G3/4×1	2
SDP-10/7C	10	350	7	100	Cummins 93kW	1700	3300 x 1800 x 1800	G1 1/4*1 x3 G3/4×1	2
SDP-12/7C	12	420	7	100	Cummins 93kW	1800	3300 x 1800 x 1800	G1 1/4*1 x3 G3/4×1	2
SDP-12/10	12	420	10	150	YUCHAI 118kW	1900	3500 x 1900 x 2100	G1 1/4*1 x3 G3/4×1	2
SDP-12/10C	12	420	10	150	Cummins 118kW	1900	3500 x 1900 x 2100	G1 1/4*1 x3 G3/4×1	2
SDP-15/13	15	525	13	190	YUCHAI 140kW	2500	3200 x 1600 x 2200	G1 1/2*1 x3 G3/4×1	4
SDP-15/14.5	15	525	14.5	210	YUCHAI 140kW	2500	3200 x 1600 x 2200	G1 1/2*1 x3 G3/4×1	4
SDP-16/12	16	560	12	175	YUCHAI 140kW	2500	3200 x 1600 x 2200	G1 1/2*1 x3 G3/4×1	4
SDP-16/15	16	560	15	220	YUCHAI 162kW	2500	3200 x 1600 x 2200	G1 1/2*1 x3 G3/4×1	4
SDP-22/8C	22	770	8	115	Cummins 194kW	3800	3700 x 1800 x 2300	G2*1 x1 G3/4×1	4
SDP-22/13C	22	770	13	190	Cummins 194kW	3800	3700 x 1800 x 2300	G2*1 x1 G3/4×1	4
SDP-27/10	27	945	10	150	YUCHAI 258kW	4600	4500 x 2000 x 2900	G2*1 x1 G3/4×1	4
SDP-27/10C	27	945	10	150	Cummins 264kW	4600	4500 x 2000 x 2900	G2*1 x1 G3/4×1	4
SDP-33/10	33	1155	10	150	YUCHAI 295kW	4700	4500 x 2000 x 2900	G2*1 x1 G3/4×1	4
