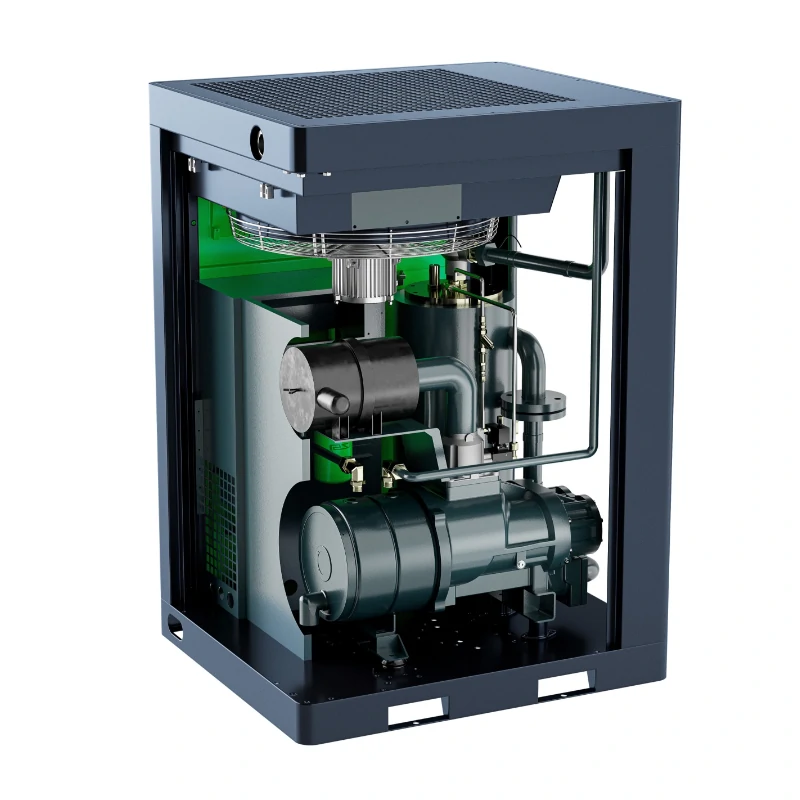

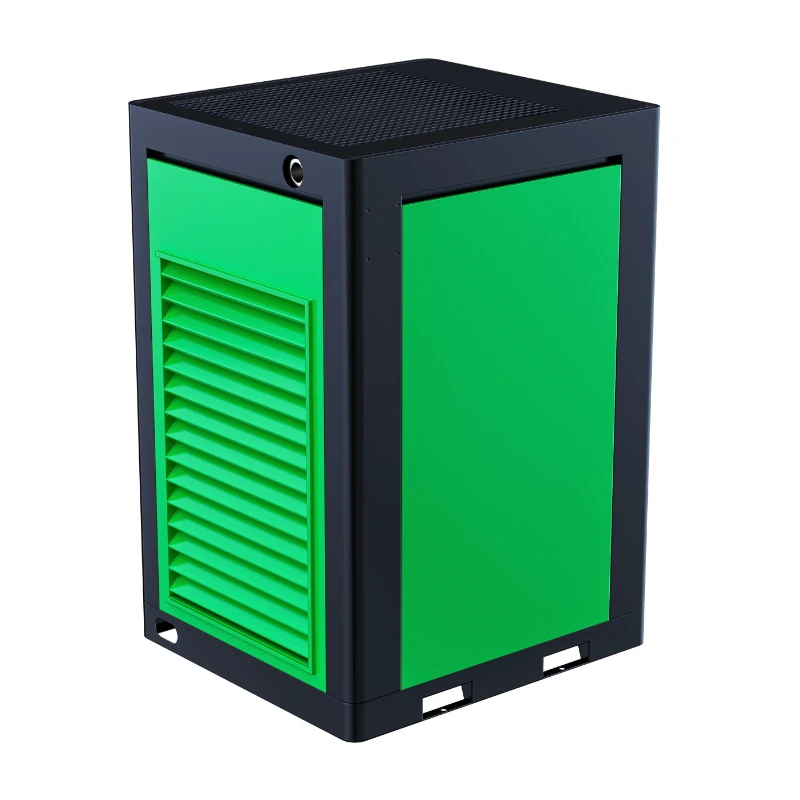

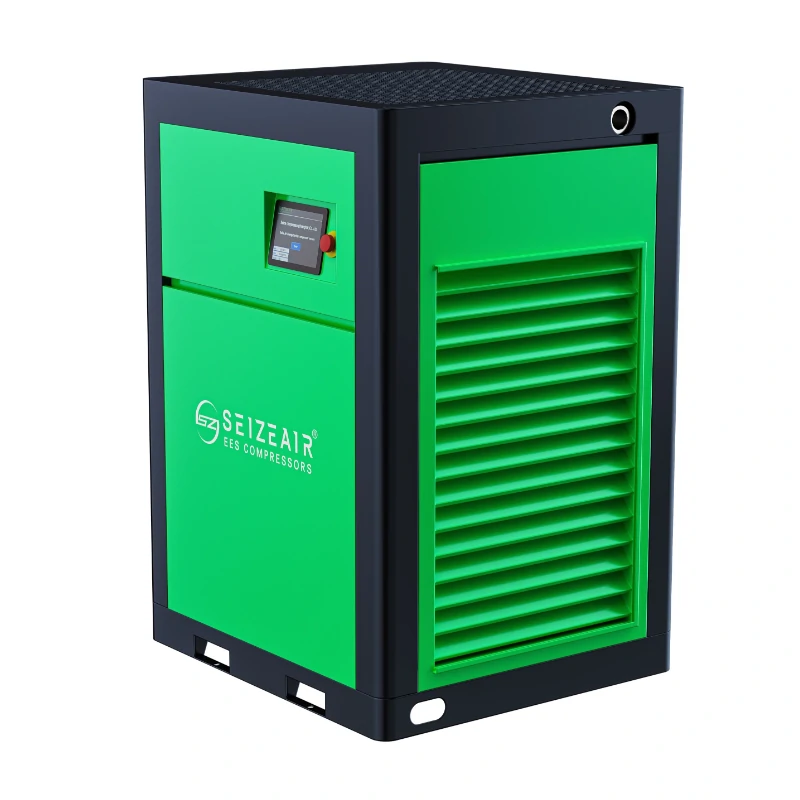

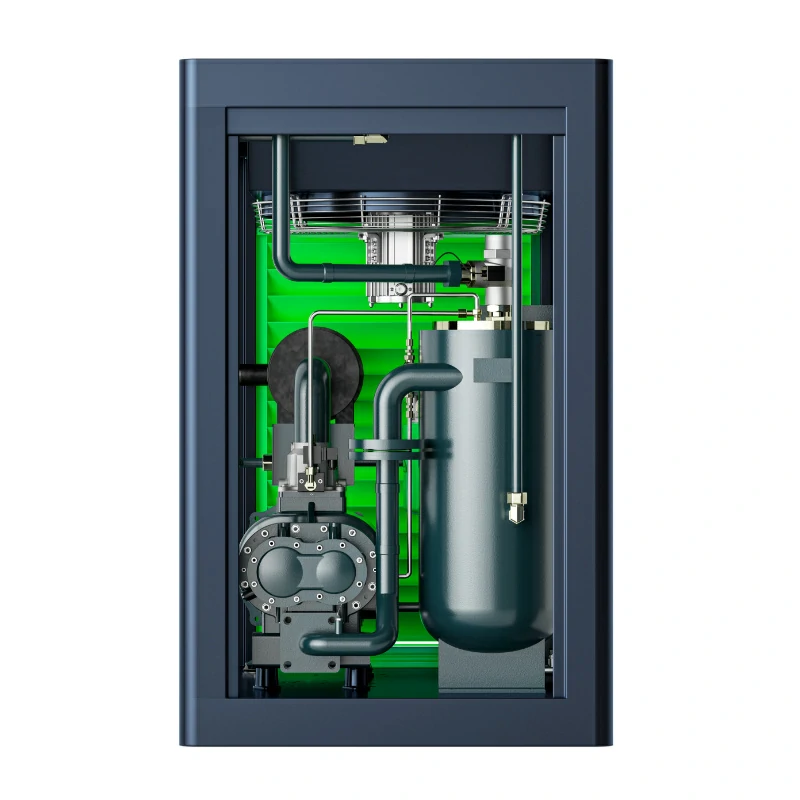

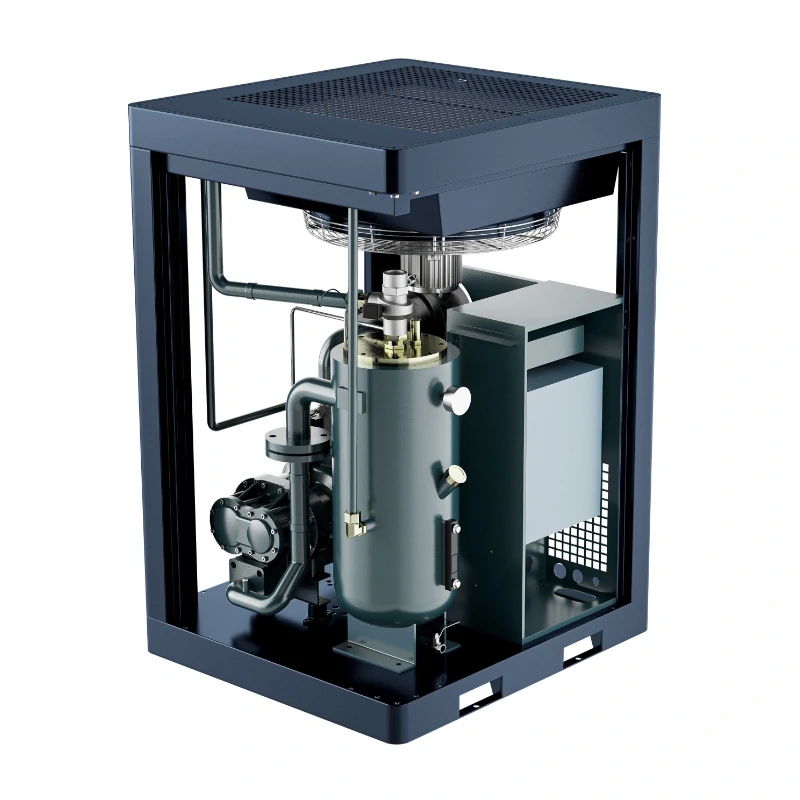

Permanent magnet variable frequency single-stage screw air compressor

IE4 Premium Efficiency（IE5 Optional）, Low-Noise,PM Motor(IP65),Dual VSD

Core Components+ System Advantages

IE4 Premium Efficiency（IE5 Optional）, Low-Noise,PM Motor(IP65),Dual VSD Screw Air Compressor

Wide Speed Range & Precise Control
Adjustable speed (40%~100%) with ±0.1% precision for stable operation
Dual Inverter for Stable Temperature & Pressure
Energy-efficient dual-frequency drive maintains consistent output.
Top-Exhaust Air-Cooled Design
External suction and upward ventilation for easy installation and heat dissipation.
Premium SKF/FAG 6-Bearing System
High-grade bearings (75+ rating) enhance durability and safety.
High-Efficiency, Low-Noise Host Design
Large rotor reduces noise (<65 dB), vibration, and energy consumption (up to 30% savings).
Intelligent Cooling & Low Oil Temperature
Stable thermal control (±2°C) ensures reliability and quiet performance.
Advanced Oil-Gas Separation (<3 ppm Residual Oil)
Custom oversized separator minimizes pressure loss and air contamination.

Application Industries

Machinery & Precision CNC

Machinery & Precision CNC

Textile & Fabric Weaving

Textile & Fabric Weaving

Automotive Manufacturing

Automotive Manufacturing

Plastics & Rubber Processing

Plastics & Rubber Processing

Packaging & Paper Processing

Packaging & Paper Processing

Construction & Mining

Construction & Mining

Product Parameter

New Model	Max working	imum pressure	Capacity(FAD)		Motor	power	Air Outlet	Dimensions(mm)			Weight
New Model	Bar	Psig	m³min	cfim	Kw	Hp	Inch	L	W	H	Kg
SZ-10PM	7.5	109	0.48~1.20	16.95~42.36	7.5	10	G3/4	650	650	1015	200
	8.5	123	0.44~1.10	15.53~38.83
	10.5	152	0.41~1.02	14.40~36.01
	12.5	181	0.34~0.86	12.14~30.36
SZ-15PM	7.5	109	0.72~1.79	25.28~63.19	11	15	G3/4	880	780	1080	280
	8.5	123	0.66~1.66	23.44~58.60
	10.5	152	0.60~1.49	21.04~52.60
	12.5	181	0.48~1.21	17.08~42.71
SZ-20PM	7.5	109	1.03~2.58	36.43~91.07	15	20	G3/4	880	780	1080	300
	8.5	123	0.94~2.35	33.18~82.96
	10.5	152	0.83~2.08	29.37~73.42
	12.5	181	0.72~1.80	25.42~63.54
SZ-25PM	7.5	109	1.24~3.10	43.78~109.43	18.5	25	G1	880	800	1350	360
	8.5	123	1.16~2.90	40.95~102.37
	10.5	152	1.01~2.52	35.58~88.96
	12.5	181	0.84~2.10	29.65~74.13
SZ30PM	7.5	109	1.5~3.75	52.95~132.38	22	30	G1	880	800	1350	400
	8.5	123	1.4~3.50	49.42~123.55
	10.5	152	1.18~2.94	41.51~103.78
	12.5	181	0.97~2.42	34.17~85.43
SZ-40PM	7.5	109	2.15~5.38	75.96~189.91	30	40	G11/2	1000	900	1420	480
	8.5	123	2.00~5.00	70.60~176.50
	10.5	152	1.76~4.41	62.27~155.67
	12.5	181	1.39~3.47	49.00~122.49
SZ-50PM	7.5	109	2.60~6.51	91.92~229.80	37	50	G11/2	1000	900	1420	540
	8.5	123	2.56~6.41	90.51~226.27
	10.5	152	2.14~5.36	75.68~189.21
	12.5	181	1.85~4.62	65.24~163.09
SZ-60PM	7.5	109	3.36~8.40	118.61~296.52	45	60	G11/2	1080	1000	1480	750
	8.5	123	3.15~7.88	11.26~278.16
	10.5	152	2.77~6.93	97.85~244.63
	12.5	181	2.40~6.00	84.72~211.80
SZ-75PM	7.5	109	4.40~11.00	155.32~388.30	55	75	G2	1400	1100	1510	1100
	8.5	123	4.12~10.30	145.44~363.59
	10.5	152	3.48~8.70	122.85~307.11
	12.5	181	3.20~8.00	112.96~282.40

New Model	Maximum working pressure		Capacity(FAD)		Motor power		Air Outlet	Dimensions(mm)			Weight
New Model	Bar	Psig	m³min	cfim	Kw	Hp	Inch	L	W	H	Kg
SZ-100PM	7.5	109	5.52~13.80	194.86~487.14	75	100	G2	1400	1100	1510	1200
	8.5	123	5.20~13.00	183.56~458.90
	10.5	152	4.60~11.50	162.38~405.95
	12.5	181	4.24~10.60	149.67~374.18
SZ-120PM (W)	7.5	109	4.13~17.80	145.79~628.34	90	120	DN65	2100	1390	1700	1600
	8.5	123	4.00~17.20	141.20~607.16
	10.5	152	3.48~14.60	122.84~515.38
	12.5	181	3.08~12.30	108.72~434.19
SZ-150PM (W)	7.5	109	5.50~22.00	194.15~776.60	110	150	DN65	2300	1550	1900	2100
	8.5	123	5.13~21.00	181.09~741.30
	10.5	152	4.47~18.00	157.79~635.40
	12.5	181	3.70~14.80	130.61~522.44
SZ-175PM (W)	7.5	109	6.43~25.70	226.98~907.21	132	175	DN80	2900	1890	1950	2500
	8.5	123	6.13~24.50	216.39~864.85
	10.5	152	5.35~21.40	188.86~755.42
	12.5	181	4.45~17.80	157.09~628.34
SZ-215PM (W)	7.5	109	7.50~30.00	264.75~1059.00	160	215	DN100	2900	1890	2050	3200
	8.5	123	7.20~28.80	254.16~1016.64
	10.5	152	5.87~23.50	207.21~829.55
	12.5	181	5.25~21.00	185.33~741.30
SZ-250PM (W)	7.5	109	8.63~34.50	304.64~1217.85	185	250	DN100	2900	1890	2050	3400
	8.5	123	8.25~33.00	291.23~1164.90
	10.5	152	7.20~28.80	254.16~1016.64
	12.5	181	5.87~23.50	207.21~829.55
SZ-340PM (W)	7.5	109	10.90~43.80	384.77~1546.14	250	340	DN125	3100	2000	2100	4500
	8.5	123	10.70~43.00	377.71~1517.90
	12.5	181	8.30~33.00	292.99~1164.90

New Model	Maximum working pressure		Capacity (FAD)		Motor power		Air Outlet	Dimensions (mm)			Weight
New Model	Bar	Psig	m³min	cfim	Kw	Hp	Inch	L	W	H	Kg
SZ-8D	7.0	102	0.90	31.77	5.5	7.5	G3/4	760	760	1065	320
	8.0	116	0.85	30.01
	10.0	145	0.75	26.48
	12.5	181	0.45	15.89
SZ-10D	7.0	102	1.20	42.36	7.5	10	G3/4	760	760	1065	350
	8.0	116	1.10	38.83
	10.0	145	1.00	35.30
	12.5	181	0.80	28.24
SZ-15D	7.0	102	1.90	67.07	11	15	G3/4	1200	750	1050	450
	8.0	116	1.80	63.54
	10.0	145	1.50	52.95
	12.5	181	1.10	38.83
SZ-20D	7.0	102	2.70	95.31	15	20	G3/4	1200	750	1050	500
	8.0	116	2.60	91.78
	10.0	145	2.50	88.25
	12.5	181	1.70	60.01
SZ-30D	7.0	102	3.70	130.61	22	30	G1	1350	850	1170	600
	8.0	116	3.50	123.55
	10.0	145	3.40	120.02
	12.5	181	2.40	84.72
SZ-50D	7.0	102	6.50	229.45	37	50	G11/2	1580	920	1220	1200
	8.0	116	6.30	222.39
	10.0	145	6.20	218.86
	12.5	181	/	/
SZ-75D (W)	7.0	102	10.80	381.24	55	75	G2	1700	1180	1650	1500
	8.0	116	10.60	374.18
	10.0	145	1	/
	12.5	181	6.50	229.45
SZ-100D (W)	7.0	102	12.50	441.25	75	100	G2	1850	1250	1650	1800
	8.0	116	12.20	430.66
	10.0	145	12.00	423.60
	12.5	181	10.60	374.18
