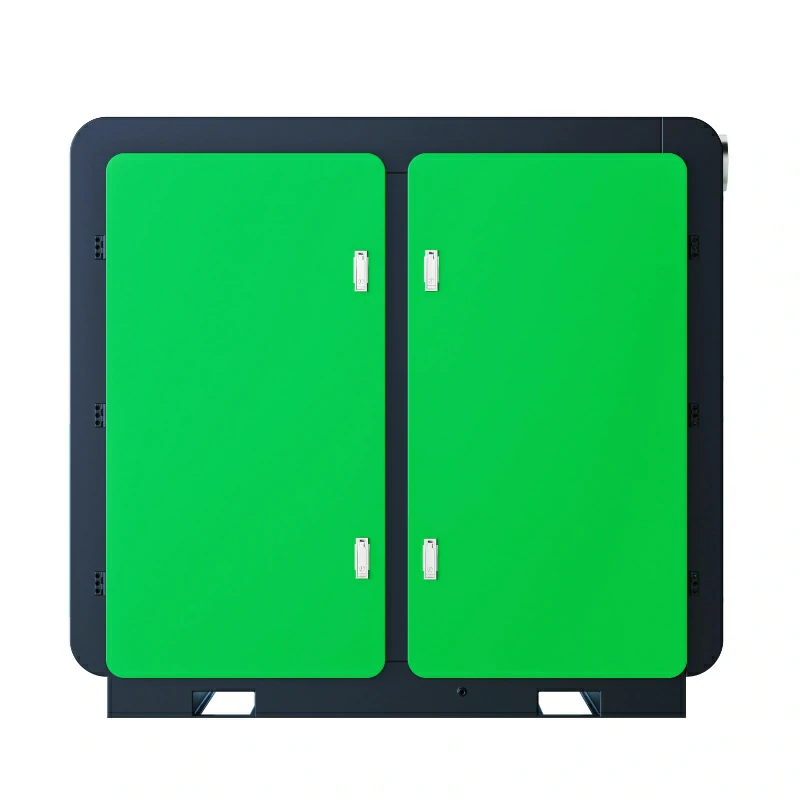

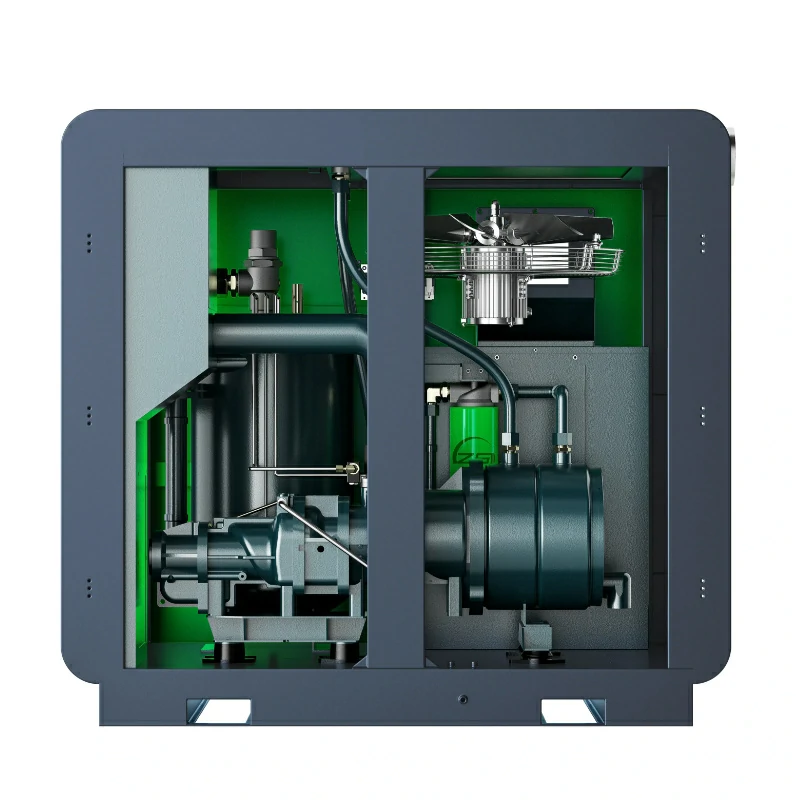

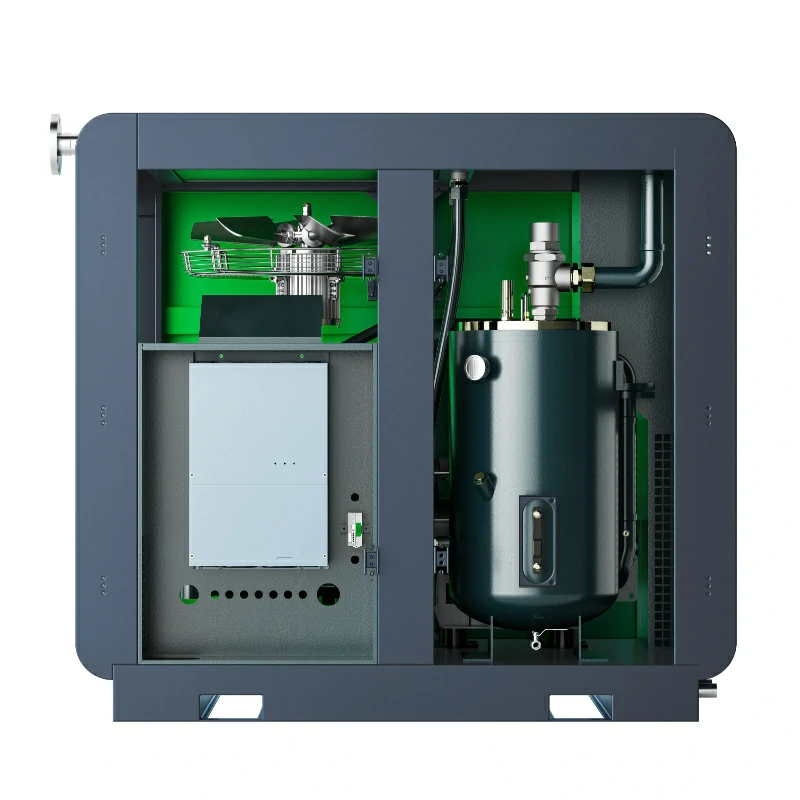

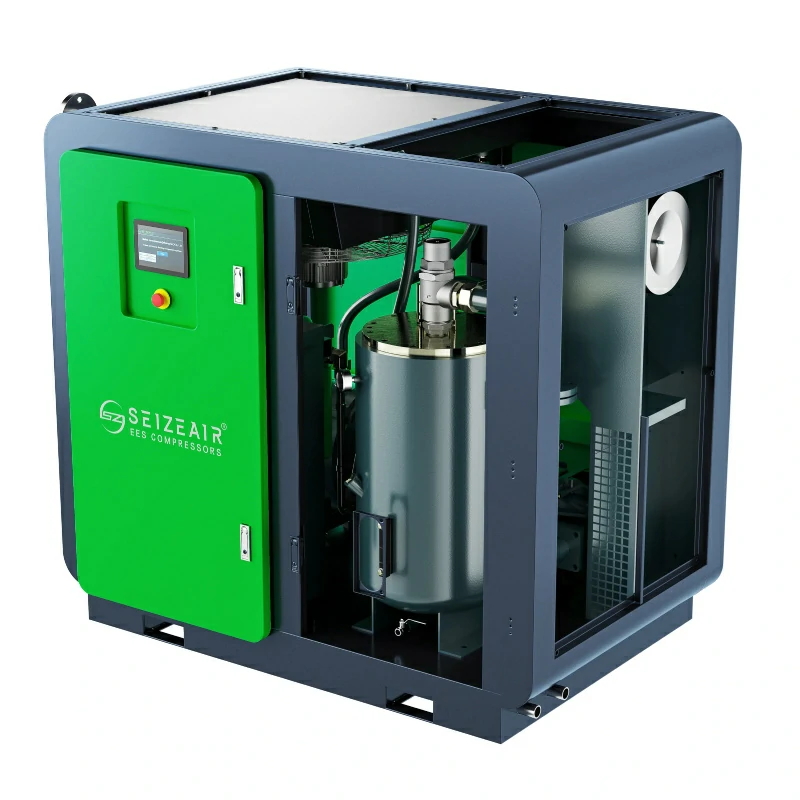

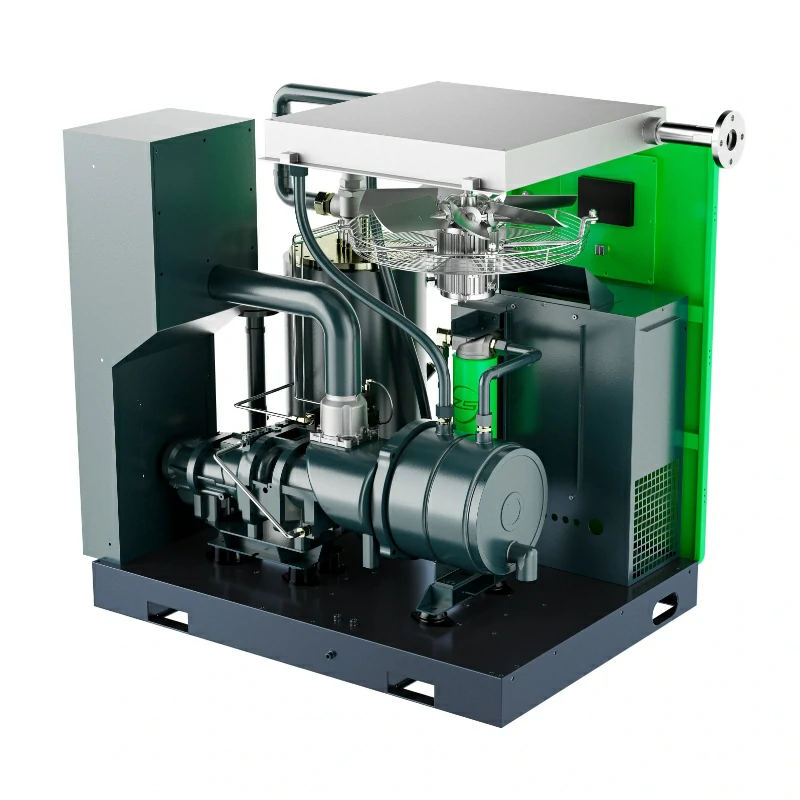

Permanent magnet variable frequency tandem two stage screw air compressor
IE4 Premium Efficiency（IE5 Optional）, Low-Noise,PM Motor(IP65),Dual VSD
| ⚡ | Power | 60-250KW |
| 💨 | Air outflow | 0.8-59m³/min |
| ⚙️ | Max pressure | 6.5-10.5bar |
Core Components+
System Advantages
IE4 Premium Efficiency（IE5 Optional）, Low-Noise,PM Motor(IP65),Dual VSD,tandem two stage screw air compressor
- High-Precision Pressure Regulation & Wide Operating Range
Delivers precise air pressure control with an extensive working range for versatile applications - Direct-Drive Coaxial Motor-Screw Design
Motor and screw airend share same axis for 98%+ transmission efficiency and reduced energy loss - Space-Saving Compact Structure
Optimized footprint design ideal for space-constrained installations - Premium Components with Cost-Effective Performance
High-quality valve systems maintain reliability while ensuring excellent value - Premium SKF Brand Bearing System

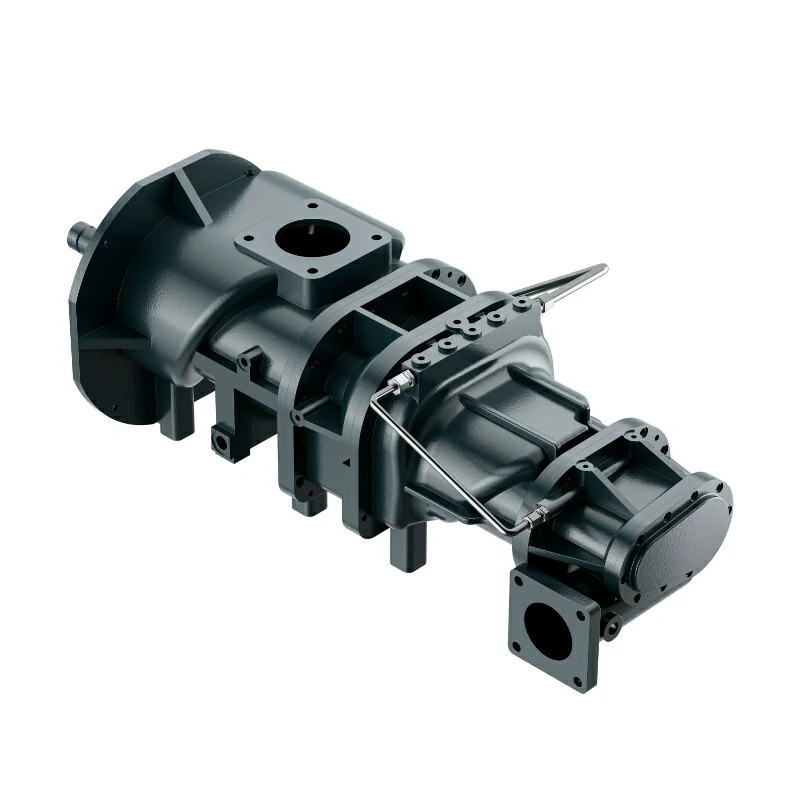

High-grade bearings (75+ rating) enhance durability and safety. - High-Efficiency Low-Speed Two Stage Screw Airend
Isothermal Compression Principle，higher volumetric efficiency，Low Compression Ration - Dual VSD Intelligent Control System
Maintains stable oil temperature (±1°C) while optimizing energy consumption - Advanced Oil-Gas Separation Technology
Custom oversized separator reduces oil content to ≤3ppm with minimal pressure drop
Product Parameter
SZ-60T~SZ-250T
| Model | Maximum working pressure |
Capacity (FAD) | Motor Power | Air Outlet |
Dimensions(mm) | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Bar | Psig | m³/min | cfim | Kw | Hp | Inch | L | W | H | Kg | |
| SZ-60T | 4.5 | 65 | 13.0 | 458.9 | 45 | 60 | G21/2 | 2250 (2200) |
1370 (1400) |
1700 (1800) |
2100 (2100) |
| 5.5 | 80 | 11.5 | 406.0 | ||||||||
| 6.5 | 94 | 10.1 | 356.5 | G2 | 1850 (1800) |
1180 (1320) |
1430 (1370) |
2000 (2000) |
|||
| 7.5 | 109 | 10.0 | 353.0 | ||||||||
| 8.5 | 123 | 9.8 | 345.9 | ||||||||
| 10.5 | 152 | 6.8 | 240.0 | 1700 | 1130 | 1460 | 1700 | ||||
| 12.5 | 181 | 6.6 | 233.0 | ||||||||
| SZ-75T (W) |
4.5 | 65 | 15.0 | 529.5 | 55 | 75 | G21/2 | 2250 (2300) |
1370 (1500) |
1700 (1750) |
2200 (2200) |
| 5.5 | 80 | 13.0 | 458.9 | ||||||||
| 6.5 | 94 | 12.5 | 441.3 | ||||||||
| 7.5 | 109 | 12.3 | 434.2 | ||||||||
| 8.5 | 123 | 12.2 | 430.7 | ||||||||
| 10.5 | 152 | 10.0 | 353.0 | ||||||||
| 12.5 | 181 | 9.8 | 345.9 | G2 | 1850(1800) | 1180(1320) | 1430(1370) | 2000(2000) | |||
| SZ-100T (W) |
4.5 | 65 | 19.0 | 670.7 | 75 | 100 | DN65 | 2450(2750) | 1670(1780) | 1740(1950) | 2600(3000) |
| 5.5 | 80 | 18.5 | 653.1 | ||||||||
| 6.5 | 94 | 16.0 | 564.8 | DN65 | 2300(2300) | 1670(1500) | 1690(1750) | 2500(2400) | |||
| 7.5 | 109 | 15.3 | 540.1 | ||||||||
| 8.5 | 123 | 15.0 | 529.5 | ||||||||
| 10.5 | 152 | 12.5 | 441.3 | G21/2 | 2250(2300) | 1370(1500) | 1700(1750) | 2300(2400) | |||
| 12.5 | 181 | 12.0 | 423.6 | ||||||||
| SZ-120T (W) |
4.5 | 65 | 23.5 | 829.6 | 90 | 120 | DN80 | 2750 (2750) |
1780 (1780) |
1950 (1950) |
3500 (3300) |
| 5.5 | 80 | 23.1 | 815.4 | ||||||||
| 6.5 | 94 | 19.1 | 674.2 | ||||||||
| 7.5 | 109 | 19.0 | 670.7 | ||||||||
| 8.5 | 123 | 18.8 | 663.6 | ||||||||
| 10.5 | 152 | 16.0 | 564.8 | DN65 | 2300 (2300) |
1670 (1500) |
1690 (1750) |
2600 (2600) |
|||
| 12.5 | 181 | 15.0 | 529.5 | ||||||||
| SZ-150T (W) |
4.5 | 65 | 30.0 | 1059.0 | 110 | 150 | DN100 | 2900 (2900) |
1940 (1940) |
1950 (1950) |
4100 (4000) |
| 5.5 | 80 | 26.5 | 935.5 | ||||||||
| 6.5 | 94 | 26.2 | 924.9 | ||||||||
| 7.5 | 109 | 23.7 | 836.6 | DN80 | 2750 (2750) |
1780 (1780) |
1950 (1950) |
3800 (3500) |
|||
| 8.5 | 123 | 23.3 | 822.5 | ||||||||
| 10.5 | 152 | 19.0 | 670.7 | ||||||||
| 12.5 | 181 | 18.5 | 653.1 | ||||||||
| SZ-175T (W) |
4.5 | 65 | 36.0 | 1270.8 | 132 | 175 | DN125 | 2930 (3250) |
1900 (1950) |
2060 (2150) |
5000 (5000) |
| 5.5 | 80 | 33.0 | 1164.9 | ||||||||
| 6.5 | 94 | 32.6 | 1150.8 | ||||||||
| 7.5 | 109 | 30.1 | 1062.5 | DN100 | 2900 (2900) |
1940 (1940) |
1950 (1950) |
4500 (4200) |
|||
| 8.5 | 123 | 26.5 | 935.5 | ||||||||
| 10.5 | 152 | 23.8 | 840.1 | ||||||||
| 12.5 | 181 | 21.3 | 751.9 | ||||||||
| SZ-200T (W) |
4.5 | 65 | 40.0 | 1412.0 | 150 | 200 | DN125 | 3250 (3250) |
1950 (1950) |
2150 (2150) |
5700 (5200) |
| 5.5 | 80 | 36.0 | 1270.8 | ||||||||
| 6.5 | 94 | 33.2 | 1172.0 | ||||||||
| 7.5 | 109 | 33.0 | 1164.9 | ||||||||
| 8.5 | 123 | 31.5 | 1112.0 | DN100 | 2900 (2900) |
1940 (1940) |
1950 (1950) |
4600 (4400) |
|||
| 10.5 | 152 | 26.6 | 939.0 | ||||||||
| 12.5 | 181 | 24.3 | 857.8 | ||||||||
| SZ-215T (W) |
4.5 | 65 | 44.0 | 1553.2 | 160 | 215 | DN125 | 3250 (3250) |
1950 (1950) |
2150 (2150) |
5800 (5400) |
| 5.5 | 80 | 41.2 | 1454.4 | ||||||||
| 6.5 | 94 | 38.9 | 1373.2 | ||||||||
| 7.5 | 109 | 33.6 | 1186.1 | ||||||||
| 8.5 | 123 | 33.5 | 1182.6 | ||||||||
| 10.5 | 152 | 30.0 | 1059.0 | DN100 | 2900 (2900) |
1940 (1940) |
1950 (1950) |
4700 (4500) |
|||
| 12.5 | 181 | 27.4 | 967.2 | ||||||||
| SZ-250T (W) |
4.5 | 65 | 20.0~50.0 | 706.0~1765.0 | 185 | 250 | DN125 | 3500 (3500) |
2250 (2100) |
2300 (2400) |
6700 (6500) |
| 5.5 | 80 | 18.4~46.0 | 649.5~1623.8 | ||||||||
| 6.5 | 94 | 16.4~41.0I | 578.9~1447.3 | ||||||||
| 7.5 | 109 | 14.8~37.0 | 522.4~1306.1 | ||||||||
| 8.5 | 123 | 14.4~36.0 | 508.3~1270.8 | ||||||||
| 10.5 | 152 | 14.2~35.5 | 501.3~1253.2 | ||||||||
| 12.5 | 181 | 12.9~32.4 | 455.4~1143.7 | ||||||||
